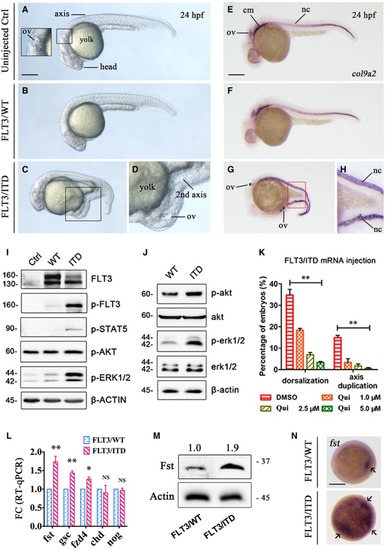

Figure 1

Overexpression of <styled-content toggle='no' style='fixed-case'>FLT</styled-content>3/<styled-content toggle='no' style='fixed-case'>ITD</styled-content> induced axis duplication and ectopic expression of <styled-content toggle='no' style='fixed-case'>FST</styled-content> in zebrafish embryos

A–D

The morphology of uninjected, FLT3/WT mRNA, and FLT3/ITD mRNA‐injected (150 ng per embryo) embryos on day 2 post‐fertilization (dpf).

E–H

Whole‐mount in situ hybridization (WISH) of notochord‐specific marker col9a2 in uninjected, FLT3/WT mRNA, and FLT3/ITD mRNA‐injected embryos on 2 dpf.

I, J

FLT3 signaling was detected by Western blotting in 293FT cells transfected with FLT3/ITD mRNA (I) or in zebrafish embryos injected with FLT3/ITD mRNA (J).

The effect of FLT3 inhibitor quizartinib (Qui) on the dorsalization and axis duplication phenotype induced by FLT3/ITD mRNA injection in zebrafish.

L–N

Quantification of fst expression by RT–qPCR (L), Western blotting (M), and WISH (N) after FLT3/ITD overexpression in zebrafish embryos at 6 hpf.

Data information: ov: otic vesicles; cm: cephalic mesoderm; nc: notochord. Scale bar = 500 μm. In (K and L), the experiments were performed in triplicates and the data are presented as mean ± SEM. *P < 0.05 and **P < 0.01 (Student's t‐test). NS, not significant.Source data are available online for this figure.

Expression Data

Gene:	col9a2
Fish:	AB
Anatomical Term:	notochord
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	hku2Tg
Observed In:	axis
Stage:	Prim-5

Phenotype Detail
