ZFIN ID: ZDB-FIG-180828-17
Tan et al., 2018 - Human MLL-AF9 Overexpression Induces Aberrant Hematopoietic Expansion in Zebrafish. BioMed Research International   2018:6705842 Full text @ Biomed Res. Int.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: Prim-5 to Day 4

Fig. S1

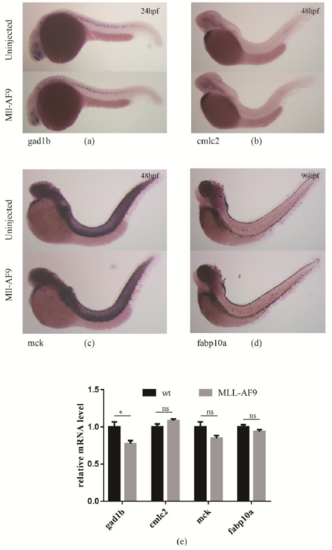

Effect of MLL-AF9 on non-hematopoietic tissue markers.

WISH assays of non-hematopoietic markers, including (a) the neural marker gad1b at 24hpf, (b) the cardiac chamber marker cmlc2 at 48hpf, (c) the skeletal muscle marker mck at 48hpf, and (d) the hepatocyte marker fabp10a at 96hpf in MLL-AF9-injected and control embryos. (e) qRT-PCR analysis of gad1b, cmlc2, mck, and fabp10a at 24, 48, 48, and 96hpf, respectively.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
ckma AB standard conditions Long-pec skeletal muscle ISH
fabp10a AB standard conditions Day 4 hepatocyte ISH
gad1b AB standard conditions Prim-5 central nervous system ISH
myl7 AB standard conditions Long-pec cardiac ventricle ISH
Antibody Labeling Details No data available
Phenotype Details No data available
Acknowledgments:
ZFIN wishes to thank the journal BioMed Research International for permission to reproduce figures from this article. Please note that this material may be protected by copyright. Full text @ Biomed Res. Int.
