Figure Caption

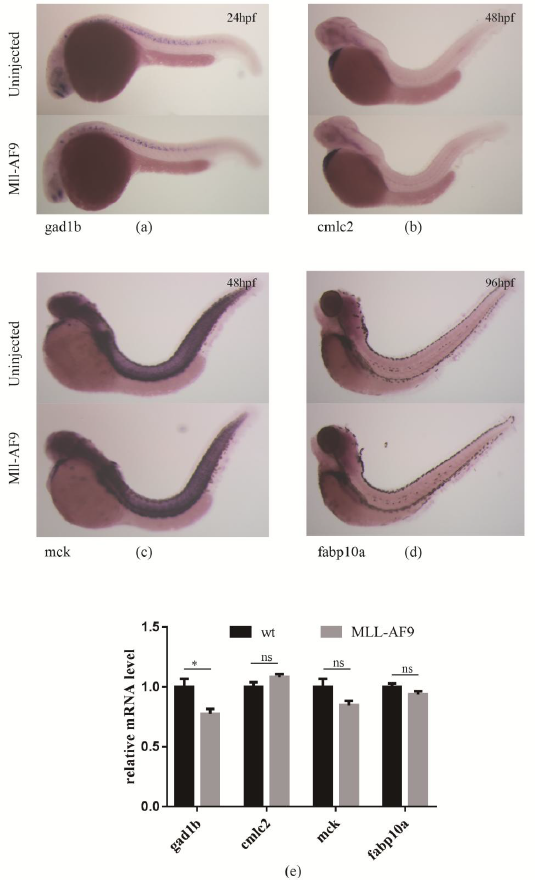

Fig. S1
Effect of MLL-AF9 on non-hematopoietic tissue markers.
WISH assays of non-hematopoietic markers, including (a) the neural marker gad1b at 24hpf, (b) the cardiac chamber marker cmlc2 at 48hpf, (c) the skeletal muscle marker mck at 48hpf, and (d) the hepatocyte marker fabp10a at 96hpf in MLL-AF9-injected and control embryos. (e) qRT-PCR analysis of gad1b, cmlc2, mck, and fabp10a at 24, 48, 48, and 96hpf, respectively.
