FIGURE

Fig. 7

ID

ZDB-FIG-180822-20

Publication

Lin et al., 2018 - Role of Calcium-Sensing Receptor in Mechanotransducer-Channel-Mediated Ca²⁺ Influx in Hair Cells of Zebrafish Larvae.

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

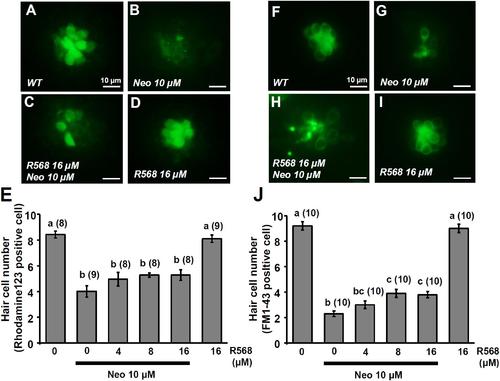

Effect of R-568 on 10 μM neomycin-induced hair cell death. 4-dpf larvae were incubated in 10 μM neomycin media with various levels of R-568 (E,J) for 1 h. After incubation, neuromast hair cells were labeled with rhodamine 123 (A–E) or FM1-43 (F–J). The addition of 16 μM R-568 partial neutralize the neuromast hair cell death induced by 10 μM neomycin (J). Data are presented as mean ± SE. A significant difference was found between values with superscript letters (^a,b,c; by one-way ANOVA and Tukey’s comparison, p < 0.05). Numbers in parentheses are the numbers of neuromasts. One L1 neuromast per larva was examined.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB
Conditions:	chemical treatment by environment: neomycin chemical treatment by environment: neomycin
Observed In:	posterior lateral line neuromast neuromast hair cell
Stage:	Day 4

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Physiol.
