Fig. 2
- ID
- ZDB-FIG-180621-79
- Publication
- Müller-Deile et al., 2018 - Overexpression of preeclampsia induced microRNA-26a-5p leads to proteinuria in zebrafish
- Other Figures
- All Figure Page
- Back to All Figure Page

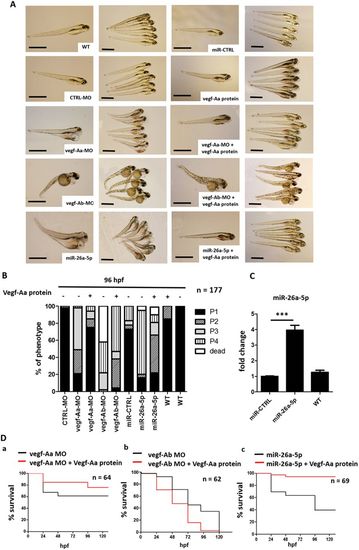

Vegf-Aa knockdown by vegf-Aa-MO or miR-26a-5p mimic leads to edema and loss of plasma proteins. Zebrafish were either injected with control morpholino (CTRL-MO), a vegf-Aa morpholino (vegf-Aa-MO), a vegf-Ab morpholino (vegf-Ab-MO), a control miR mimic (miR-CTRL) or a miR-26a-5p mimic (miR-26a-5p) alone (?) or as co-injection with a recombinant zebrafish Vegf-Aa protein (Vegf-Aa) (+) at one to four cell stages. *p?<? 0.05, **p?<? 0.01, ***p?<?0.001, n.s. not significant. (A) Phenotype pictures of zebrafish larvae at 96 hpf. Scale bar?=?500?µM. (B) Quantification of edemous phenotype of zebrafish larvae at 96 hpf. The edemous phenotype was categorized in 4 groups: P1?=?no edema, P2?=?mild edema, P3?=?severe edema, P4?=?very severe edema, Dead fish are those found dead between 72 hpf and 96 hpf; CTRL-MO n?=?15, vegf-Aa-MO n?=?20, vegf-Aa-MO + Vegf-Aa n?=?21, vegf-Ab-MO n?=?16, vegf-Ab-MO + Vegf-Aa n?=?16, miR-CTRL n?=?16, miR-26a-5p n?=?14, miR-26a-5p + Vegf-Aa n?=?24, WT + Vegf-Aa n?=?17, WT n?=?18, total n?=?177. (C) TaqMan qPCR for miR-26a-5p in whole zebrafish larvae lysate 120 h after injection of a miR-26a-5p mimic (miR-26a-5p) or a miR control (miR-CTRL) in one to four cell stage. ***p?<?0.001. n?=?12 for each group, total n?=?36. (D) Survival of zebrafish over time. Survival is given in percent [%] of zebrafish of each group. a) Survival of zebrafish injected with a vegf-Aa morpholino (vegf-Aa-MO) in black versus co-injection of a vegf-Aa morpholino and a Vegf-Aa protein (vegf-Aa-MO + Vegf-Aa protein) in red; n?=?64. b) Survival of zebrafish injected with a vegf-Ab morpholino (vegf-Ab-MO) in black versus co-injection of a vegf-Ab morpholino and a Vegf-Aa protein (vegf-Ab-MO + Vegf-Aa protein) in red; n?=?62. c) Survival of zebrafish injected with a miR-26a-5p mimic (miR-26a-5p) in black versus co-injection of a miR-26a-5p mimic and a Vegf-Aa protein (miR-26a-5p + Vegf-Aa protein) in red; n?=?69. |
Fish: | |
---|---|
Knockdown Reagents: | |
Observed In: | |
Stage Range: | Day 4 to Day 5 |
