FIGURE

Fig. 6

ID

ZDB-FIG-180418-39

Publication

Lee et al., 2017 - Genetic and neuronal regulation of sleep by neuropeptide VF

Other Figures

All Figure Page

Back to All Figure Page

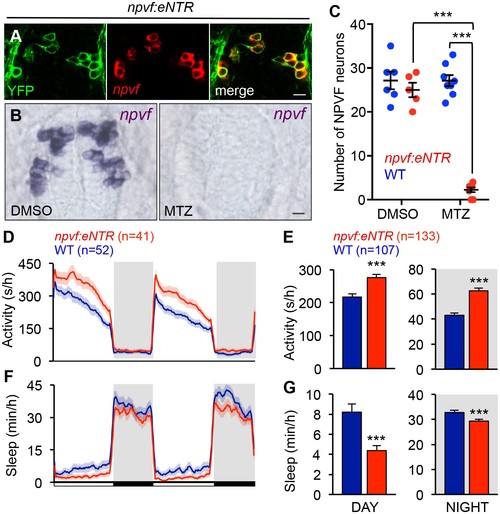

Fig. 6

Chemogenetic ablation of NPVF neurons promotes wakefulness.

(A) mTagYFP and npvf coexpression in a 5-dpf Tg(npvf:mTagYFP-T2A-eNTR) zebrafish shown using YFP IHC and npvf FISH. (B–G) Tg(npvf:mTagYFP-T2A-eNTR) and WT siblings were treated with 5 mM MTZ for 60 h. Behavior was monitored from 6 to 8 dpf. (B) npvf ISH in 7-dpf Tg(npvf:mTagYFP-T2A-eNTR) zebrafish treated with DMSO or MTZ. Scale: 10 μm. NPVF neuronal loss is quantified as mean ± SEM in (C). (D–G) Transgenic animals treated with MTZ were more active (D,E) and slept less (F,G) than their identically treated WT siblings. Mean ± SEM for one representative experiment (D,F), or three pooled experiments (E,G) are shown. White and black bars under behavioral traces indicate day (14 h) and night (10 h), respectively. n = number of animals. ***p<0.005 by Two-way ANOVA with Holm-Sidak test (C) or Student’s t-test (E,G). See also Table 1 and Figure 6—figure supplement 1.

Expression Data

Genes:	npvf YFP
Fish:	ct850Tg/+ (AB/TL)
Condition:	chemical treatment by environment: metronidazole
Anatomical Terms:	hypothalamus dorso-medial region hypothalamus peptidergic neuron
Stage Range:	Day 5 to Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	ct850Tg/+ (AB/TL)
Condition:	chemical treatment by environment: metronidazole
Observed In:	hypothalamus dorso-medial region hypothalamus peptidergic neuron sleep swimming behavior
Stage:	Days 7-13

Phenotype Detail
