Fig. 7

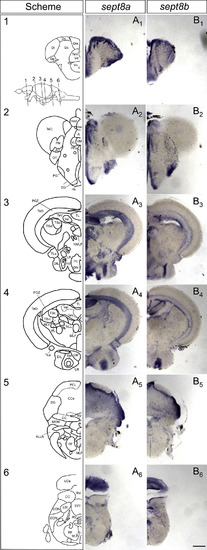

Expression of sept8a and sept8b in the adult zebrafish brain.

Schemes in the left panel display the corresponding sections from the zebrafish atlas. The expression patterns of sept8a (A1 – A6) and sept8b (B1 – B6) revealed large overlaps throughout the entire brain. However, sept8a was uniquely expressed in the DIL, CM (A3, A4), PL, NLL, NLV (A4) and CCe (A5). sept8b revealed a scattered expression in the TeO (B2 – B4), TL (B3, B4), DON, CON and MON (B5 – B6) as well as a ventricular preference. The ventricles (TelV, LR, RV and TeV) are indicated in addition to the described expression pattern in the text. See list for abbreviations. Brain schemes were modified from Wullimann et al. (1996). Scale bar: 200μm.

Expression Data

Genes:	septin8a septin8b
Fish:	WT
Anatomical Terms:	anterior lateral line nerve caudal octaval nucleus caudal parvocellular preoptic nucleus caudal periventricular hypothalamus caudal zone of dorsal telencephalon central nucleus torus semicircularis cerebellar crest corpus cerebelli corpus mamillare descending octaval nucleus diffuse nucleus inferior lobe dorsal habenular nucleus dorsal periventricular hypothalamus dorsal zone of dorsal telencephalon facial lobe glossopharyngeal lobe granular eminence lateral lemniscus nucleus lateral recess lateral zone of dorsal telencephalon medial caudal lobe medial longitudinal fasciculus medial zone of dorsal telencephalon nucleus lateralis valvulae nucleus of the medial longitudinal fasciculus synencephalon optic tectum optic tract parvocellular preoptic nucleus periventricular grey zone periventricular nucleus preglomerular nucleus Purkinje cell reticular formation rostral thalamic nucleus telencephalic ventricle torus lateralis torus longitudinalis valvula cerebelli ventral habenular nucleus ventricular zone ventrolateral nucleus ventrolateral thalamic nucleus ventromedial thalamic nucleus
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 25-26, Berger, C., Helmprobst, F., Chapouton, P., Lillesaar, C., Stigloher, C., sept8a and sept8b mRNA expression in the developing and adult zebrafish, 8-21, Copyright (2017) with permission from Elsevier. Full text @ Gene Expr. Patterns
