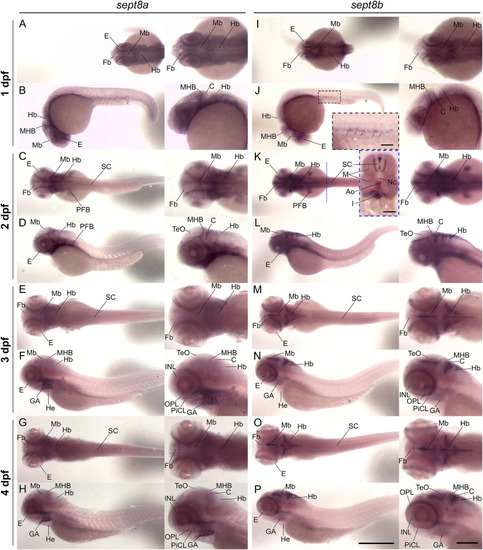

Exression of sept8aand sept8b in embryonic and early larvae zebrafish revealed by RNA in situ hybridization. 1–4 dpf zebrafish are shown in dorsal and lateral views. Head structures are enlarged in the right-hand panels. A – H: sept8a expression was primarily detectable in ventral body regions at 1 dpf and additionally in single brain structures at 2 dpf. At 3 dpf and 4 dpf sept8a expression was detectable in the gill arches and the brain. I – P: sept8b transcripts were also detectable in ventral regions as well as in cells above the yolk extension (black arrowheads) at 2 dpf. sept8b showed a specific distribution in the midbrain and hindbrain of 2–4 dpf zebrafish. See list for abbreviations. The boxed area in J is enlarged in the inset image. The dotted line in K marks the level of the transverse section shown in the inset image. Scale bars: Whole mounts: 500μm Head structures: 200μm Insets: 50μm. showed a specific distribution in the midbrain and hindbrain of 2–4 dpf zebrafish. See list for abbreviations. The boxed area in J is enlarged in the inset image. The dotted line in K marks the level of the transverse section shown in the inset image. Scale bars: Whole mounts: 500μ Head structures: 200μ; Insets: 50μ. |
| Genes: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | Prim-5 to Day 4 |
Reprinted from Gene expression patterns : GEP, 25-26, Berger, C., Helmprobst, F., Chapouton, P., Lillesaar, C., Stigloher, C., sept8a and sept8b mRNA expression in the developing and adult zebrafish, 8-21, Copyright (2017) with permission from Elsevier. Full text @ Gene Expr. Patterns
