Fig. 5

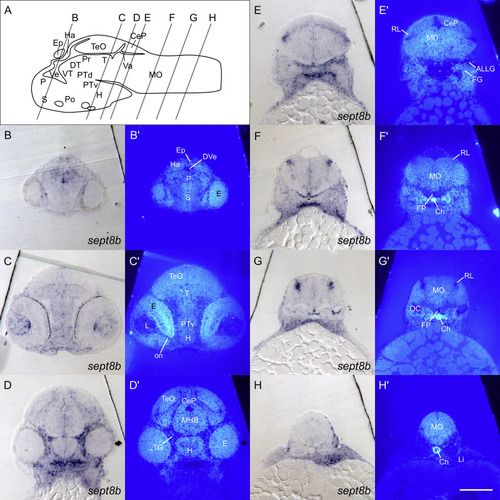

sept8b expression in the CNS of 2 dpf zebrafish.

Transverse sections of epon embedded 2 dpf zebrafish with labeled sept8b transcripts and counterstained with Hoechst33258 (B – H). Section levels and angle are displayed schematically (A). sept8b expressing cells were detectable in neuronal structures such as the Ep and P (B), the T, PTv and H (C), at border regions of TeO and CeP (D, E) and the RL (E − G) as well as in mesenchymal cells at the ventral body side (D – F), in cells of the lens (C) and in the OC (G). See list for abbreviations. Brain schemes were modified from

Expression Data

Gene:	septin8b
Fish:	mitfa^w2/w2; mpv17^b18/b18
Anatomical Terms:	caudal tuberculum cerebellar plate dorsal telencephalon epiphysis floor plate granular eminence hypothalamus lens liver medulla oblongata midbrain hindbrain boundary optic tectum otic vesicle retina tegmentum trigeminal ganglion
Stage:	Long-pec
