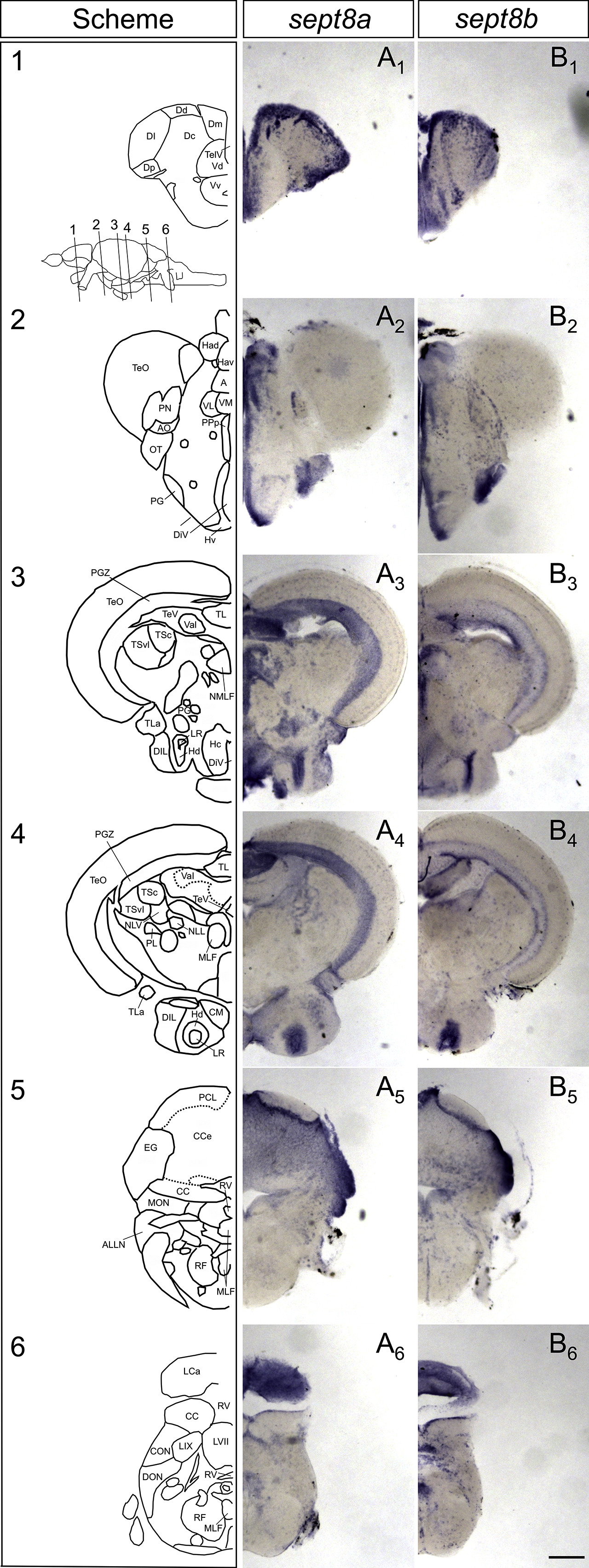

Fig. 7 Expression of sept8a and sept8b in the adult zebrafish brain.

Schemes in the left panel display the corresponding sections from the zebrafish atlas. The expression patterns of sept8a (A1 – A6) and sept8b (B1 – B6) revealed large overlaps throughout the entire brain. However, sept8a was uniquely expressed in the DIL, CM (A3, A4), PL, NLL, NLV (A4) and CCe (A5). sept8b revealed a scattered expression in the TeO (B2 – B4), TL (B3, B4), DON, CON and MON (B5 – B6) as well as a ventricular preference. The ventricles (TelV, LR, RV and TeV) are indicated in addition to the described expression pattern in the text. See list for abbreviations. Brain schemes were modified from Wullimann et al. (1996). Scale bar: 200μm.
