Fig. 2

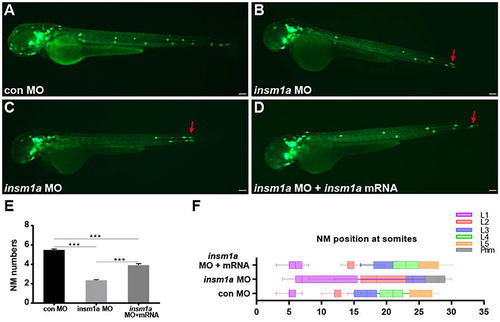

Insm1a is required for proper migration of the pLLp and neuromast deposition. (A?D) Fluorescent images of cldnb:lynGFP embryos at 48 hpf injected with control-MO (A), insm1a-MO (B,C), and insm1a-MO + insm1a mRNA (D). Red arrows indicate the position of the primordium. Scale bars: 100 ?m. (E) Quantification of the number of neuromasts (NM) along the body at 48 hpf in control-MO (n = 25), insm1a-MO (n = 121), and insm1a-MO + insm1a mRNA (n = 24). ***p < 0.001. (F) The distribution of deposited neuromasts L1 to L5 in control-MO, insm1a-MO, and insm1a-MO + insm1a mRNA at 48 hpf.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zf106Tg + MO4-tp53 + MO5-insm1a
Knockdown Reagents:	MO4-tp53 MO5-insm1a
Observed In:	neuromast posterior lateral line neuromast hair cell morphogenesis posterior lateral line primordium neuromast
Stage:	Long-pec

Phenotype Detail
