Fig. S3

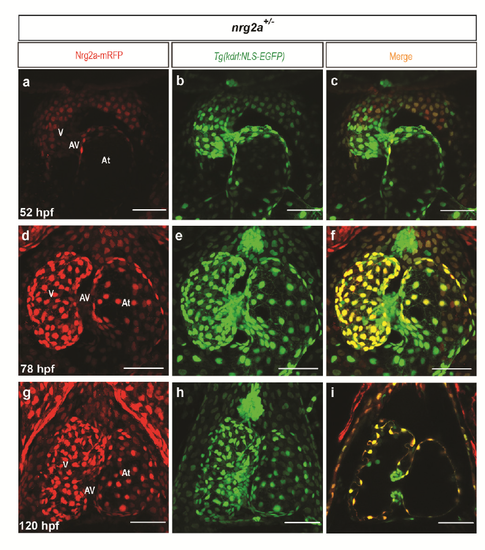

Spatiotemporal pattern of cardiac Nrg2a-mRFP expression during embryonic and larval development

(a-i) 3D views (maximum intensity z-projections) of Tg(kdrl:NLS-EGFP);nrg2a ^+/- hearts at 52 (a-c), 78 (d-f) and 120 (g-i) hpf; Nrg2a-mRFP expression appears stronger in the ventricle than in the atrium or AV canal; V: ventricle, AV: atrioventricular canal, At: atrium; scale bars, 50 μm.
