ZFIN ID: ZDB-FIG-170301-21
Nam et al., 2017 - Enhanced antidiabetic efficacy and safety of compound K⁄β-cyclodextrin inclusion complex in zebrafish. Journal of ginseng research   41:103-112 Full text @ J Ginseng Res
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Conditions:
Anatomical Term:
Stage: Day 5
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage: Day 5

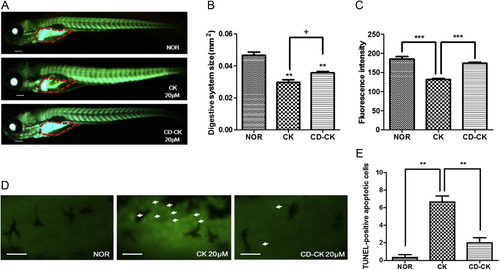

Fig. 8

The toxicity of compound K (CK) and β-cyclodextrin included in compound K (CD-CK) in enhanced green fluorescent protein (EGFP) expression fused to the mitochondrial localization sequence (MLS) of zebrafish COXVIII (MLS-EGFP) and TUNEL assays of CK- and CD-CK-treated digestive systems in zebrafish larvae. (A) Representative whole zebrafish images. The red dotted line indicates the digestive system. Scale bar = 100 μm. (B) Size of the digestive system analysis. (C) The fluorescence intensity analysis. (D) The white arrow indicates the location of apoptosis in the digestive system. Scale bar = 50 μm. (E) Quantification of TUNEL-positive apoptosis cells. TUNEL, TdT-UTP nick end labeling. ** p < 0.01 compared to the normal (NOR) group. *** p < 0.001. + p < 0.05.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP cms1Tg control Day 5 digestive system IFL
cms1Tg chemical treatment by environment: beta-cyclodextrin, chemical treatment by environment: ginsenoside C-K Day 5 digestive system IFL
cms1Tg chemical treatment by environment: ginsenoside C-K Day 5 digestive system IFL
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
WT chemical treatment by environment: beta-cyclodextrin, chemical treatment by environment: ginsenoside C-K Day 5 digestive system apoptotic process occurrence, ameliorated
WT chemical treatment by environment: ginsenoside C-K Day 5 digestive system apoptotic process increased occurrence, abnormal
cms1Tg chemical treatment by environment: beta-cyclodextrin, chemical treatment by environment: ginsenoside C-K Day 5 digestive system EGFP expression amount, ameliorated
Day 5 digestive system size, ameliorated
cms1Tg chemical treatment by environment: ginsenoside C-K Day 5 digestive system decreased size, abnormal
Day 5 digestive system EGFP expression decreased amount, abnormal
