Fig. 1

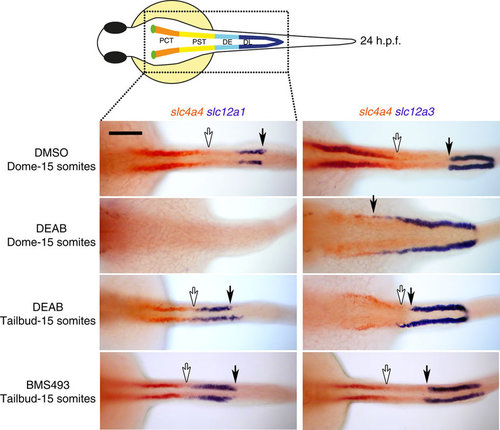

Inhibition of RA signalling affects pronephros segmentation during gastrulation. Whole-mount double in situ hybridization analysis at 24 hours post fertilisation (h.p.f.) for nephron segment markers slc4a4 (red), slc12a1 and slc12a3 (purple) treated with BMS189453, DEAB or DMSO (vehicle control). Embryos are shown as dorsal views with anterior to the left. White arrows indicate posterior end of slc4a4+ domain and black arrows indicate the boundary between the DE and DL segments. Scale bar, 100 µm. |
