Fig. S2

Expression patterns of twist1a, Ibx2, and pax2a.

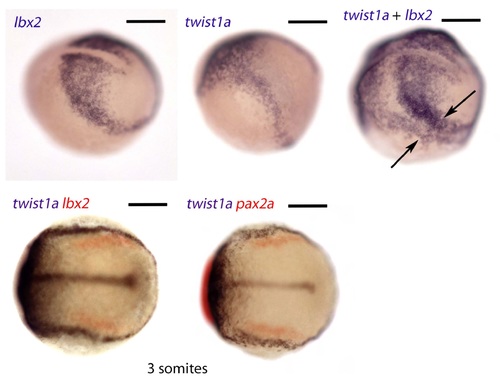

Upper panels show the expression patterns of twistla and Ibx2 at late gastrulation/early somitogenesis by single (left and middle panels) and double (right hand panel) whole mount in situ hybridisation. Arrows indicate the non-overlapping twistla⁺ and Ibx2⁺ domains corresponding to presumptive lateral plate mesoderm and intermediate mesoderm, respectively. Lower panels show two color double stainings at the 3 somite stage for twistla, Ibx2 and pax2a, as indicated. Scale bar represents 100 µm.
