Fig. 3

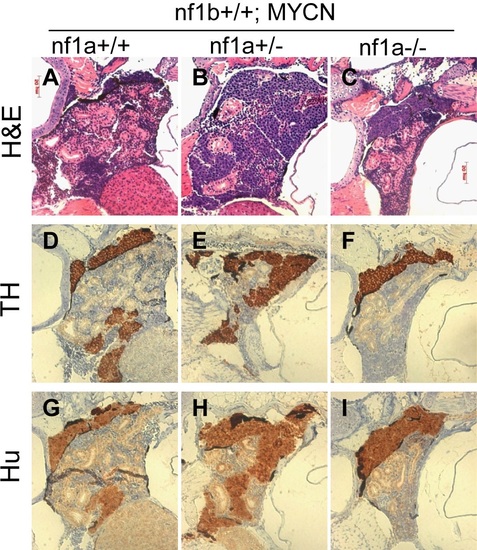

Neuroblastomas arise from sympathetic neuroblast precursors in MYCN transgenic fish with loss of nf1.

H&E staining of sagittal sections through the tumors in the IRG of nf1a+/+;nf1b+/+;MYCN;GFP (A), nf1a+/-;nf1b+/+;MYCN;GFP (B) and nf1a-/-;nf1b+/+;MYCN;GFP (C) fish at the age of 6 weeks. Immunohistochemical analysis of neuroblastoma markers tyrosine hydroxylase (TH, D-F) and Hu (G-I) expression on sagittal sections through tumors in the IRG of nf1a+/+;nf1b+/+;MYCN;GFP (D,G), nf1a+/-;nf1b+/+;MYCN;GFP (E,H) and nf1a-/-;nf1b+/+;MYCN;GFP (F,I) fish at the age of 6 weeks.

Expression Data

Antibodies:	Ab1-elavl Ab2-th
Fish:	zdf16Tg nf1a^p301/+; zdf16Tg nf1a^p301/p301; zdf16Tg
Anatomical Term:	interrenal gland neuroblastoma
Stage:	Days 30-44

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
