Fig. 7

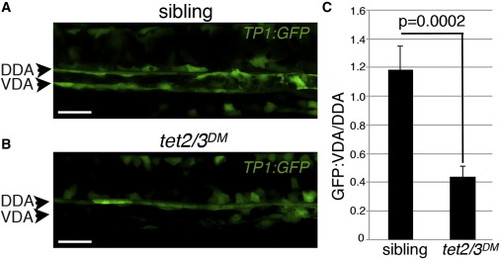

Tet2/3 Are Required for Notch Signaling in the Hemogenic Endothelium

(A and B) Confocal images of Tp1:GFP expression in the dorsal aorta of sibling and tet2/3^DM larvae at 28 hpf. DDA indicates the dorsal wall of the dorsal aorta. VDA indicates the ventral wall of the dorsal aorta.

(C) Ratio of GFP fluorescence intensity in the VDA/DAA in sibling and tet2/3^DM larvae (n = 11 per genotype). Numerical data are presented as the mean ± SEM. Scale bars indicate 100 µM.

Expression Data

Gene:	EGFP
Fish:	um14Tg tet2^mk17/mk17; tet3^mk18/mk18; um14Tg
Anatomical Terms:	dorsal aorta dorsal region dorsal aorta ventral region
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	tet2^mk17/mk17; tet3^mk18/mk18; um14Tg
Observed In:	dorsal aorta ventral region
Stage:	Prim-5

Phenotype Detail
