ZFIN ID: ZDB-FIG-150407-5
Renz et al., 2015 - Regulation of β1 Integrin-Klf2-Mediated Angiogenesis by CCM Proteins. Developmental Cell   32:181-190 Full text @ Dev. Cell
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage: Long-pec
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Prim-5 to Long-pec

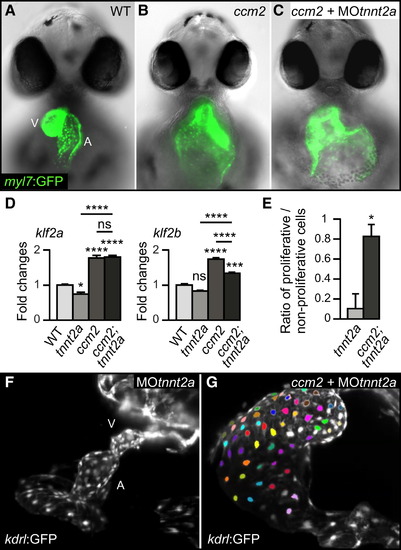

Fig. 5

Blood-Flow-Independent Expression of klf2a/b mRNA in ccm2m201 Mutants

(A–C) The ccm2m201 mutant cardiac ballooning phenotype is flow independent. Frontal views of 48 hrpf hearts of the myocardial reporter line Tg(myl7:GFP)twu34 (Huang et al., 2003) show that cardiac expansion is not rescued in ccm2m201 mutant; tnnt2a morphants that lack blood flow.

(D) The expression levels of klf2a and klf2b mRNA, as measured by qRT-PCR, are elevated in ccm2m201 mutant; tnnt2a morphants that lack blood flow.

(E–G) Loss of Ccm2 results in overproliferation of the endocardium under no-flow conditions. (E) Quantifications of the ratio of proliferating versus nonproliferating endocardial cells between 33 and 53 hrpf in tnnt2a morphants compared with ccm2m201 mutant;tnnt2a morphants based on SPIM recordings (n = 2). (F) The endocardium of tnnt2a morphants is not proliferative as indicated by the lack of color-coded proliferative cells (still image derived from Movie S1, which is based on SPIM time-lapse recordings of endocardial morphogenesis marked by Tg(kdrl:GFP)s843 between 33 and53 hrpf). (G) The combined loss of Ccm2 and Tnnt2a is characterized by a high rate of proliferative events (indicated by uniquely colored daughter cells derived from proliferative events; still image derived from Movie S2). A, atrium; V, ventricle. Statistical data are means and SEM; ns, not significant; p < 0.05; p < 0.01; p < 0.001; p < 0.0001; see  Supplemental Experimental Procedures for details about statistical data analysis.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP ccm2m201/m201; twu34Tg standard conditions Long-pec cardiac muscle IFL
ccm2m201/m201; twu34Tg + MO1-tnnt2a standard conditions Long-pec cardiac muscle IFL
twu34Tg standard conditions Long-pec cardiac muscle IFL
klf2a WT standard conditions Long-pec whole organism RTPCR
WT + MO1-tnnt2a standard conditions Long-pec whole organism RTPCR
ccm2m201/m201 standard conditions Long-pec whole organism RTPCR
ccm2m201/m201 + MO1-tnnt2a standard conditions Long-pec whole organism RTPCR
klf2b WT standard conditions Long-pec whole organism RTPCR
WT + MO1-tnnt2a standard conditions Long-pec whole organism RTPCR
ccm2m201/m201 standard conditions Long-pec whole organism RTPCR
ccm2m201/m201 + MO1-tnnt2a standard conditions Long-pec whole organism RTPCR
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
ccm2m201/m201; s843Tg + MO1-tnnt2a standard conditions Prim-5 - Long-pec endocardium proliferative, abnormal
ccm2m201/m201; twu34Tg standard conditions Long-pec heart edematous, abnormal
Long-pec heart increased size, abnormal
ccm2m201/m201; twu34Tg + MO1-tnnt2a standard conditions Long-pec heart edematous, abnormal
ccm2m201/m201; twu34Tg + MO1-tnnt2a standard conditions Long-pec heart increased size, abnormal
s843Tg + MO1-tnnt2a standard conditions Prim-5 - Long-pec endocardium hypotrophic, abnormal
