Fig. 2

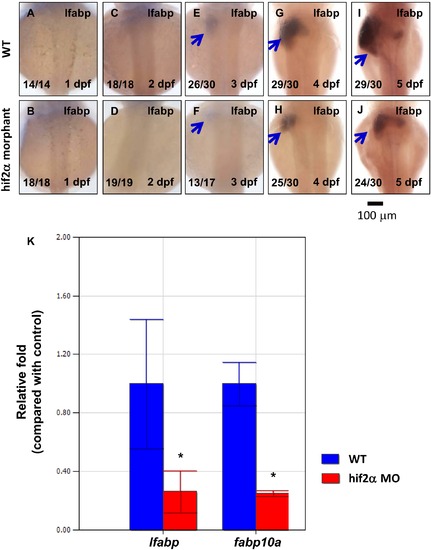

Knockdown of hif2-alpha confers a small liver phenotype.

(A?J) Development of the embryonic liver was monitored by the expression pattern of the lfabp gene in wild-type embryos and hif2-alpha ATG-MO-injected embryos at 1?5 dpf by WISH, thereby revealing a small liver phenotype in hif2-alpha morphants. (K) Expression of the lfabp and fabp10a genes was investigated in wild-type embryos and hif2-alpha morphants at 5 dpf by qPCR (n = 30). Expression was normalized to β-actin. WT, wild type. The experiment was performed in triplicate, error bars indicate S.D. *, p<0.05, unpaired t-test.

Expression Data

Gene:	fabp1a
Fish:	WT WT + MO1-epas1b
Knockdown Reagent:	MO1-epas1b
Anatomical Term:	hepatocyte
Stage Range:	Prim-5 to Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-epas1b
Knockdown Reagent:	MO1-epas1b
Observed In:	liver
Stage Range:	Protruding-mouth to Day 5

Phenotype Detail
