Fig. 2

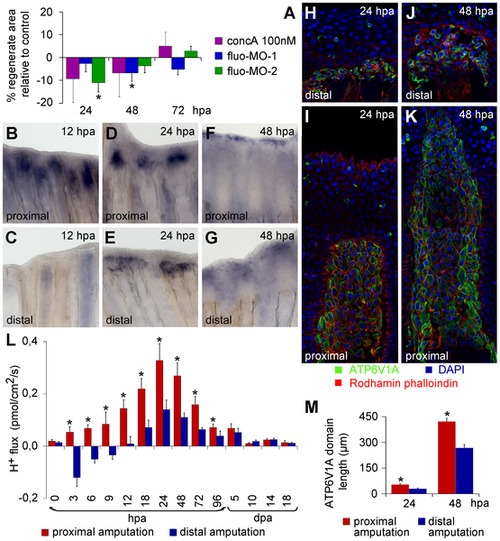

V-ATPase inhibition affects regeneration and, similar to H+ efflux, has a different expression pattern depending on the amputation plane along the PD axis. (A) Inhibition of the V-ATPase using concanamycinA (concA) and fluorescein- tagged morpholinos (fluo-MO-1 and 2). (B–M) Experiments performed after proximo-distal amputation. (B–G) In situ hybridization for atp6v1e1b at 12 h (B, C), 24 h (D, E) and 48 h (F, G) after proximal (B, D, F) and distal amputation (C, E, G). (H–K) Immunohistochemical detection of Atp6v1a at 24 h (H, I) and 48 h (J, K) after proximal (I, K) and distal amputation (H, J). (L) H+ efflux pattern during regeneration after proximal and distal amputation (n = 8–10). (M) Length of Atp6v1a expression domain in proximal and distal stumps, 24 and 48 hpa. *statistical significant results (n = 3, p<0.05). hpa: hours post amputation. For each panel, n = 6, except mentioned otherwise.

Expression Data

Gene:	atp6v1e1b
Antibody:	Ab4-atp6v1a
Fish:	AB
Condition:	physical alteration: anatomical structure
Anatomical Term:	caudal fin blastema
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
