FIGURE
Fig. 2
- ID
- ZDB-FIG-140331-9
- Publication
- Kwak et al., 2006 - Zebrafish pax5 regulates development of the utricular macula and vestibular function
- Other Figures
- All Figure Page
- Back to All Figure Page
Fig. 2

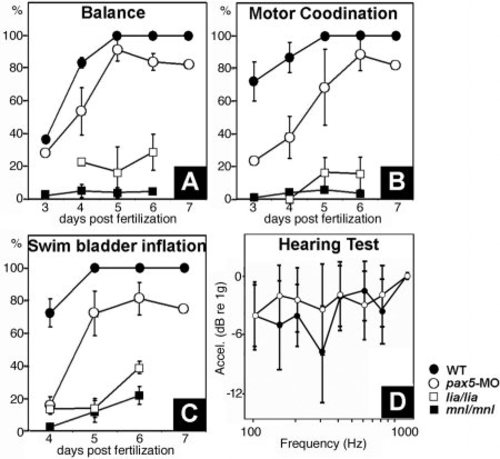

A-C: Assessment of vestibular and auditory function. Development of balance (A), motor coordination (B), and swim bladder inflation (C) in wild-type (n = 173), pax5-morphant (n = 330), lia/lia (n = 110) and mnl/mnl (n = 238) embryos between 3 and 7 days postfertilization (dpf). Data show the means and standard errors of two independent experiments. D: Frequency range and sensitivity of hearing in wild-type larvae and pax5 morphants at 5 dpf. Only pax5 morphants with severe vestibular deficits were used in D. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Fish: | |
---|---|
Knockdown Reagents: | |
Observed In: | |
Stage Range: | Protruding-mouth to Days 7-13 |
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev. Dyn.
