Fig. 7
- ID
- ZDB-FIG-140331-2
- Publication
- Wilkins et al., 2013 - p53-Mediated Biliary Defects Caused by Knockdown of cirh1a, the Zebrafish Homolog of the Gene Responsible for North American Indian Childhood Cirrhosis
- Other Figures
- All Figure Page
- Back to All Figure Page

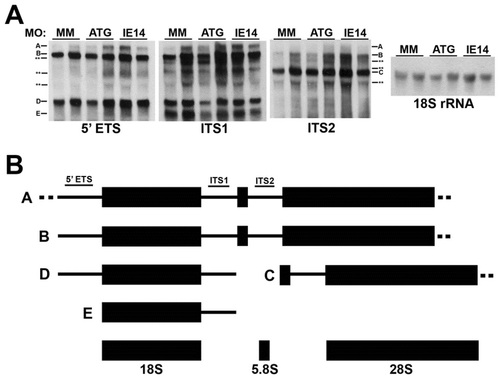

Normal ribosomal RNA processing in Cirhin-deficient larvae. (A) Northern blots demonstrating equivalent levels of pre-rRNA species in duplicate samples of mismatch MO-injected and cirh1a MO-injected embryos. Dashes and letters correspond to presumed pre-rRNA species identified by probes 5′ETS, ITS1, and ITS2, while asterisks indicate unknown pre-rRNA species (schematized in panel B). The far right panel shows the results of blotting with an 18S rRNA probe, demonstrating total RNA loading. Mean 45S/18S rRNA ratios were not statistically different between treatment groups (p>0.05). (B) Schematic depicting presumed pathway of zebrafish ribosomal RNA processing; individual RNA species not drawn to scale (adapted from [32]). |
Fish: | |
---|---|
Knockdown Reagents: | |
Observed In: | |
Stage: | 20-25 somites |
