FIGURE

Fig. 1

ID

ZDB-FIG-131205-8

Publication

Zaghloul et al., 2010 - Functional analyses of variants reveal a significant role for dominant negative and common alleles in oligogenic Bardet-Biedl syndrome

Other Figures

All Figure Page

Back to All Figure Page

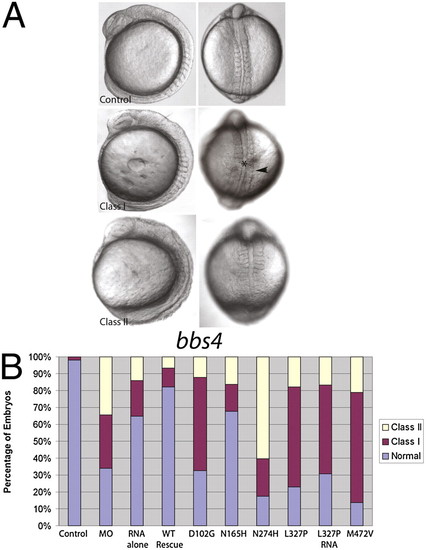

Fig. 1

Suppression of BBS4 produces specific defects. (A) Injection of MOs against individual bbs genes (bbs4 shown here) into zebrafish embryos produces gastrulation defects, including a short body axis, a widened and kinked notochord (*), and broadened somites (arrowhead), which can be rescued by WT human mRNA. Coinjections of mutant mRNAs produce a spectrum of defects. (B) Whereas WT RNA rescues the MO phenotypes (WT RNA), coinjection of hypomorphic mutations (N165H) partially rescues the phenotype; however, null mutations (D102G, N274H, and M472V in BBS4) do not rescue, and dominant-negative mutations (L327P) exacerbate the phenotype and produce defects by injection of RNA alone.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-bbs4
Knockdown Reagent:	MO1-bbs4
Observed In:	gastrulation notochord somite whole organism anterior-posterior axis
Stage Range:	5-9 somites to 10-13 somites

Phenotype Detail
