Fig. 7

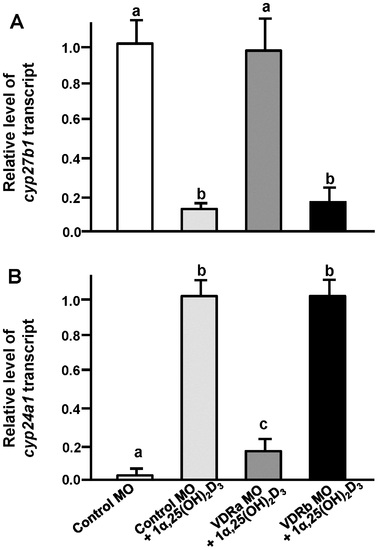

Effects of vitamin D receptor (VDR)a and VDRb morpholino oligonucleotides (MOs) on cyp27b1 and cyp24a1 mRNA expressions in 3-d post-fertilization (dpf) zebrafish embryos treated with 1α,25(OH)2D3 (20 µg/l). (A) cyp27b1 mRNA expression. (B) cyp24a1 mRNA expression. mRNA expressions were analyzed by a qPCR using β-actin as the internal control. Different letters indicate a significant difference (p<0.05) using one-way ANOVA followed by Tukey’s multiple-comparison test. Values are the mean ± SD. (n = 5-6). |
Expression Data
| Genes: | |
|---|---|
| Fish: | |
| Knockdown Reagents: | |
| Anatomical Term: | |
| Stage: | Protruding-mouth |
