Fig. 1

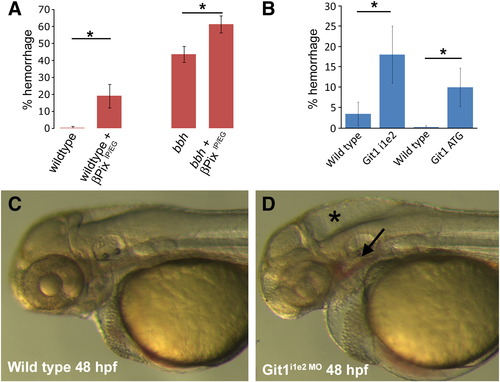

Mutation of Git1 binding residues in βPix or knockdown of Git1 leads to hemorrhage. A) Expression of mutant βPix lacking residues important for Git1 binding (βPix IP/EG) leads to increased hemorrhage in wild type vessels, and in bbh^m292 mutants. B) Knockdown of Git1 by either a Git1^i1e2 or Git1^ATG morpholino leads to increased hemorrhage as compared to wild type embryos. C) Wild type embryo at 48 hpf. D) Git1^i1e2 morphant shows hemorrhage (arrow) and hydrocephalus (star).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	arhgef7b^m292/m292 TL + MO1-git1 TL + MO2-git1
Knockdown Reagents:	MO1-git1 MO2-git1
Observed In:	brain brain vasculature
Stage:	Long-pec

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 363(1), Liu, J., Zeng, L., Kennedy, R.M., Gruenig, N.M., and Childs, S.J., betaPix plays a dual role in cerebral vascular stability and angiogenesis, and interacts with integrin alphavbeta8, 95-105, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
