Fig. S3

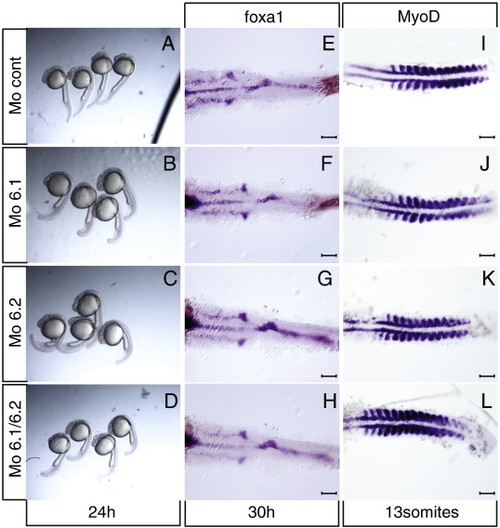

Effects of the nkx6 knockdown on embryo general morphology and on the whole endoderm. A–D: bright-field pictures of control (A) nkx6.1 (B), nkx6.2 (C) and nkx6.1/nkx6.2 (D) morphants at 24 hpf. E–L: WISHs showing expression of foxa1 at 30 hpf (E–H) and myoD at 13 somites (I–L) in control (E; I), nkx6.1 (F; J), nkx6.2 (G; K) and nkx6.1/nkx6.2 (H; L) morphants; all views are ventral with anterior part to the left. Scale: 20 μm. |
