FIGURE

Fig. 1

ID

ZDB-FIG-100309-1

Publication

Huang et al., 2010 - Deficiency of smarcal1 causes cell cycle arrest and developmental abnormalities in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

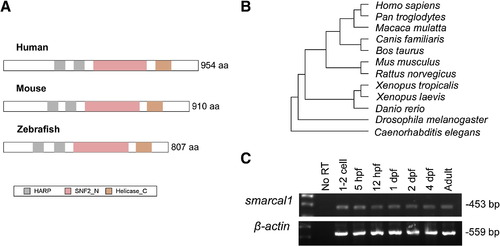

Structure and expression of smarcal1. (A) Structural comparison of putative zebrafish Smarcal1 with human and mouse SMARCAL1 protein. HARP: HepA-related protein; SNF2_N: SNF2 family N-terminal domain; Helicase_C: Helicase superfamily c-terminal domain. (B) Phylogenetic analysis shows that zebrafish Smarcal1 protein is conserved among vertebrates. (C) RT-PCR detection of maternal and zygotic smarcal1 transcript from 1-cell stage to adult zebrafish.

Expression Data

Gene:	smarcal1
Fish:	AB
Anatomical Term:	whole organism
Stage Range:	2-cell to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 339(1), Huang, C., Gu, S., Yu, P., Yu, F., Feng, C., Gao, N., and Du, J., Deficiency of smarcal1 causes cell cycle arrest and developmental abnormalities in zebrafish, 89-100, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
