Fig. 3
- ID
- ZDB-FIG-100211-44
- Publication
- Davey et al., 2010 - Differential expression of neuroligin genes in the nervous system of zebrafish
- Other Figures
- (all 6)
- All Figure Page
- Back to All Figure Page

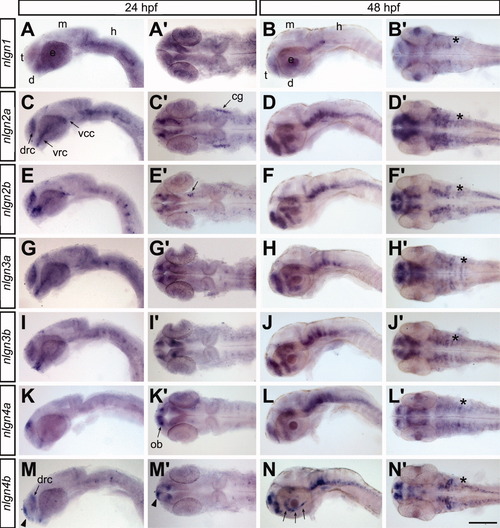

Expression of nlgns in the developing nervous system. The expression patterns for the nlgn genes were revealed by whole-mount ISH and are displayed as lateral views and dorsal views (A-N′) at 24 (A,C,E,G,I,K,M) and 48 hpf (B,D,F,H,J,L,N). d, diencephalon; e, eye; h, hindbrain; m, midbrain; t, telencephalon; cg, cranial ganglia; ob, olfactory bulb; dorso-rostral cluster; vcc, ventro-caudal cluster; vrc, ventro-rostral cluster; asterisks (*) denote the otic vesicles. Scale bar = 110 μm in 24-hpf embryos and 90 μm in 48-hpf embryos. |
Genes: | (all 7) |
---|---|
Fish: | |
Anatomical Terms: | (all 16) |
Stage Range: | Prim-5 to Long-pec |
