Fig. 49

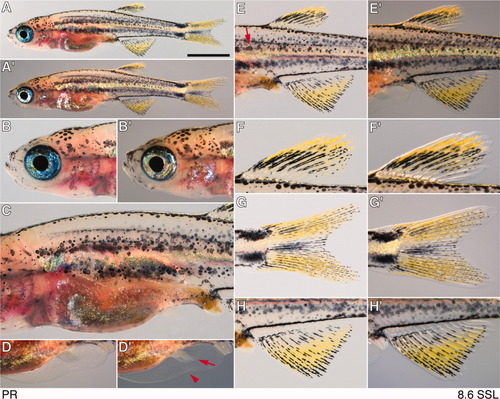

Pelvic fin ray appearance; PR, 8.5 mm SL (standard length). A,A′: Whole body. Scale bar = 2 mm. B,B′: Head. C: Anterior and middle trunk. D,D′: Pelvic fin with first rays (arrow) as well as minor lobe of fin fold and site of resorption (arrowhead). E,E′: Middle trunk showing dorsal and anal fins and pigment pattern. Residual embryonic/early larval melanophores occur near the horizontal myoseptum (arrow). F,F′: Dorsal fin. G,G′: Caudal fin, showing emergence of first stripes. H,H′: Anal fin. |
