FIGURE

Fig. 8

ID

ZDB-FIG-090506-10

Publication

Chen et al., 2009 - Zebrafish cdx1b regulates differentiation of various intestinal cell lineages

Other Figures

All Figure Page

Back to All Figure Page

Fig. 8

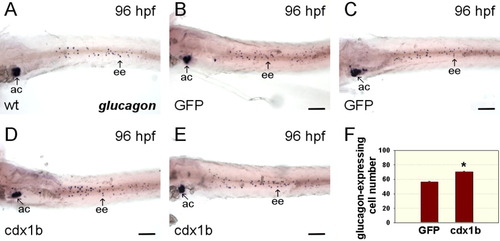

Effects of ectopic cdx1b expression on the development of enteroendocrine cells in the intestine. A-E: Wild type (A), CMV-GFP-injected (B, C), and CMV-cdx1b-injected (D, E) 96-hr post-fertilization (hpf) deyolked embryos hybridized with glucagon antisense RNA probes. F: Comparison of glucagon-expressing enteroendocrine cell numbers between CMV-GFP-injected (n = 29) and CMV-cdx1b-injected (n = 27) embryos. Error bars indicate standard errors. *P < 0.001. Ac, pancreatic α cells; ee, enteroendocrine cells. Scale bars = 100 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
