Fig. 2

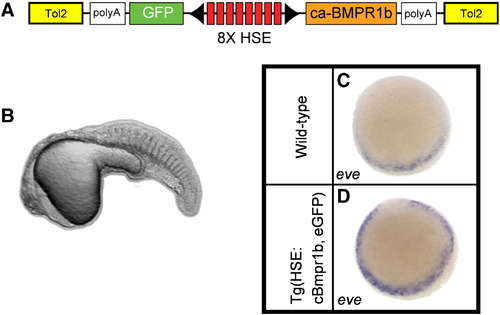

A new transgenic line allows temporal cell-autonomous activation of Bmp signaling. (A) Schematic diagram of construct used to create the new line. A multimerized minimal heat shock-responsive promoter is flanked by genes for GFP and a constitutively active mutant form of the Type Ib Bmp receptor. Tol2 elements enhance transgenesis efficiency. (B) Early heat shock of a transgenic embryo at dome stage recapitulates the expected Bmp ventralized phenotype. (C) eve1 expression is rapidly induced by ectopic Bmp signaling. Embryos were heat-shocked at dome stage and fixed at shield stage.

Expression Data

Gene:	eve1
Fish:	WT w64Tg (WIK/AB)
Condition:	heat shock
Anatomical Terms:	margin margin ventral region
Stage:	Shield

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	w64Tg (WIK/AB)
Condition:	heat shock
Observed In:	whole organism
Stage:	Prim-5

Phenotype Detail
