Fig. 1
- ID
- ZDB-FIG-081202-1
- Publication
- Rodriguez et al., 2008 - The receptor protein-tyrosine phosphatase, Dep1, acts in arterial/venous cell fate decisions in zebrafish development
- Other Figures
- All Figure Page
- Back to All Figure Page

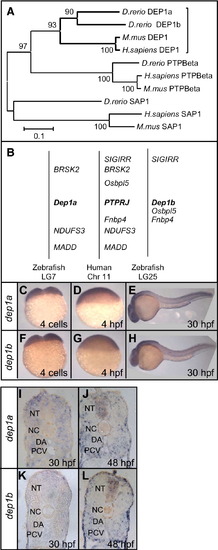

Dep1a and Dep1b are orthologs of human Dep1 and are broadly expressed during early development. (A) Phylogenetic tree of Dep1 and its most closely related family members, PTPβ and SAP1. The PTP domains of zebrafish (D. rerio), human (H. sapiens) and mouse (M. mus) R3 subfamily members were plotted, based on sequence identity. (B) Genomic localization of human Dep1 (Chr. 11), Dep1a (LG7) and Dep1b (LG25) and genes in their immediate surroundings. (C–L) Dep1a- and dep1b-specific riboprobes, encompassing the catalytic domain, were generated and used in whole-mount in situ hybridization. Whole-mount expression of dep1a (C–E) and dep1b (F–H) during early zebrafish development, 4 cell stage (C,F), 4 hpf (D,G) and 30 hpf (E,H) are depicted as well as sections of 30 hpf and 48 hpf embryos (I–L). Relevant structures were labeled: DA, dorsal aorta; NC, notochord, NT, neural tube; PCV, posterior cardinal vein. |
| Genes: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | 4-cell to Long-pec |
Reprinted from Developmental Biology, 324(1), Rodriguez, F., Vacaru, A., Overvoorde, J., and den Hertog, J., The receptor protein-tyrosine phosphatase, Dep1, acts in arterial/venous cell fate decisions in zebrafish development, 122-130, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
