FIGURE

Fig. 5

ID

ZDB-FIG-080225-6

Publication

Marvin et al., 2008 - Developmental expression patterns of the zebrafish small heat shock proteins

Other Figures

(all 6)

All Figure Page

Back to All Figure Page

Fig. 5

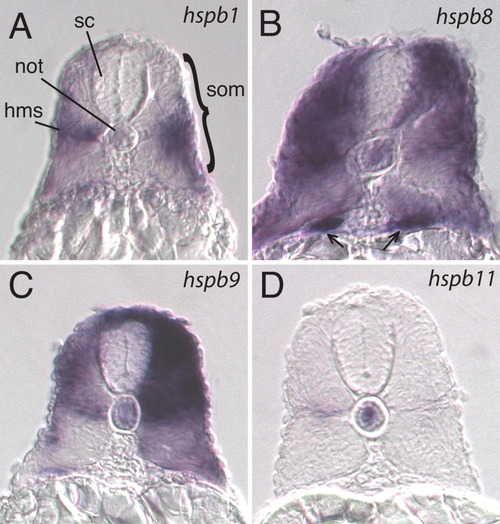

Transverse sections through trunks of 48 hours postfertilization (hpf) embryos highlighting somite and notochord expression. A: hspb1 is expressed in superficial somite, possibly slow twitch muscle fibers, and at low levels in notochord. B: hspb8 is expressed throughout the somite, in lateral spinal cord, in notochord, and in bilateral structures, possibly the pronephric ducts (arrows). C: hspb9 is expressed predominantly in dorsal somite and notochord. D: hspb11 is expressed in the horizontal myoseptum and notochord. hms, horizontal myoseptum; not, notochord; sc, spinal cord; som, somites.

Expression Data

Genes:	hspb1 hspb8 hspb9 hspb9l
Fish:	WT
Anatomical Terms:	horizontal myoseptum notochord pronephros slow muscle cell somite spinal cord (all 6)
Stage:	Long-pec
