FIGURE

Fig. 5

ID

ZDB-FIG-070309-8

Publication

Wilson et al., 2007 - Cadherin-4 plays a role in the development of zebrafish cranial ganglia and lateral line system

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

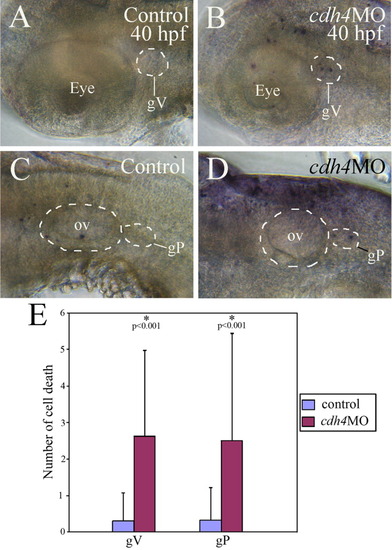

TUNEL staining of whole mount embryos demonstrates increased cell death in cdh4 morphants trigeminal ganglion (gV) and posterior lateral line ganglion (gP). A-D: Lateral views of the embryo head (anterior to the left and dorsal up), with A and B focusing on the eye and gV, and C and D focusing on the otic vesicle (ov) and gP. E: Cell death was significantly greater (P < 0.001) in both the gV and gP of cdh4 morphants (RcadhMphA injected, n = 26) than those of control embryos (n = 37).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-cdh4
Knockdown Reagent:	MO1-cdh4
Observed In:	cell death
Stage:	Prim-25

Phenotype Detail
