Figure Caption

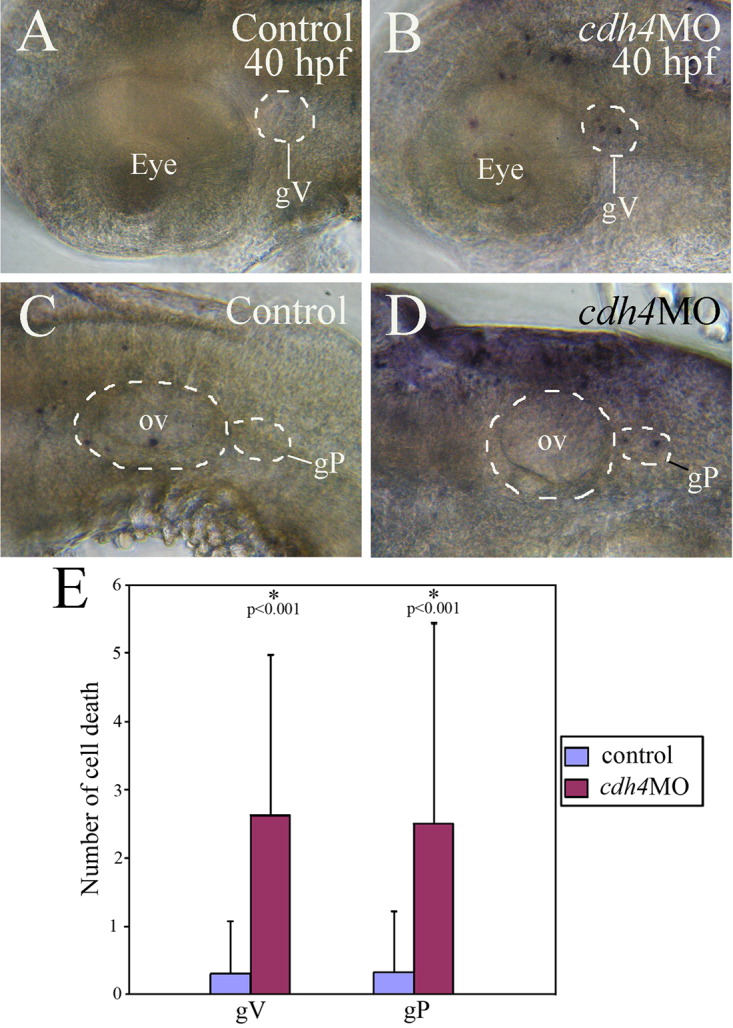

Fig. 5 TUNEL staining of whole mount embryos demonstrates increased cell death in cdh4 morphants trigeminal ganglion (gV) and posterior lateral line ganglion (gP). A-D: Lateral views of the embryo head (anterior to the left and dorsal up), with A and B focusing on the eye and gV, and C and D focusing on the otic vesicle (ov) and gP. E: Cell death was significantly greater (P < 0.001) in both the gV and gP of cdh4 morphants (RcadhMphA injected, n = 26) than those of control embryos (n = 37).
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev. Dyn.
