FIGURE

Fig. 5

ID
ZDB-FIG-050211-3
Publication
Marza et al., 2005 - Developmental expression and nutritional regulation of a zebrafish gene homologous to mammalian microsomal triglyceride transfer protein large subunit
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5

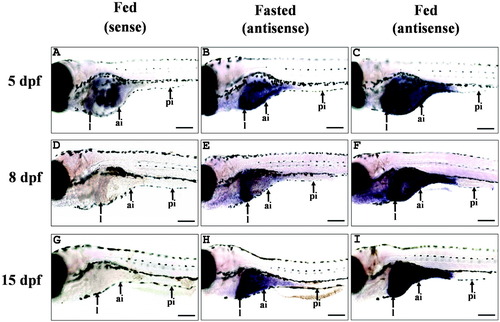

The effect of feeding on mtp expression in zebrafish larvae as evaluated by whole-mount in situ hybridization. A-I: Larvae were fasted for 18 hr and fed (A,C,D,F,G,I) or not (B,E,H) with dried chicken egg yolk powder for 2 hr. A-I: The 5 days postfertilization (dpf; A-C), 8 dpf (D-F), and 15 dpf (G-I) larvae were then collected and hybridized with sense (A,D,G) or antisense riboprobes (B,C,E,F,H,I). Larvae are shown in lateral view with the anterior part to the left. B,C,E,F,H,I: At each developmental stage, mtp expression in the anterior intestine (ai) dramatically rose in fed larvae (C,F,I) compared with fasted larvae (B,E,H). mtp hybridization signal also appears to be increased in the liver (l). No transcripts could be detected in the posterior intestine (pi). A,D,G: No staining signal has been observed using the control sense probe. Scale bars = 500 μm.

Expression Data
Gene:
Fish:
Anatomical Terms:
Stage Range: Day 5 to Days 14-20

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
