Figure Caption

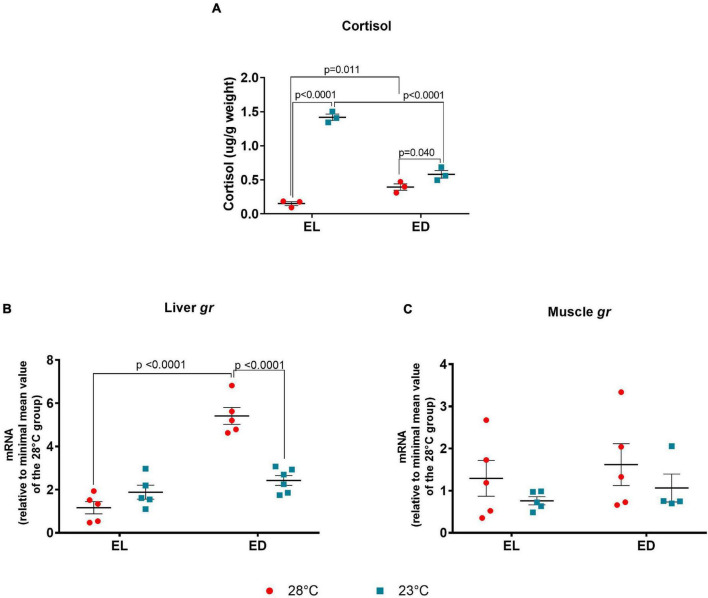

FIGURE 4
Early light (EL) and early dark (ED) whole body cortisol and gene expression of glucocorticoid receptor (gr) in adult Danio rerio. (A) Cortisol levels; (B) liver gr; (C) muscle gr. The hormone concentration (μg) was normalized by sample weight (g, Supplementary Table S2). The gene expression was normalized by the 18S rRNA and expressed relative to the lowest mean of the control temperature group. The values are expressed as mean ± SEM. n = 3 (pools of four animals each). Significant differences are shown when p < 0.05. Red symbol corresponds to 28oC and blue symbol corresponds to 23oC.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front. Physiol.
