Fig. 5

ID
ZDB-IMAGE-210129-26
Genes
Antibodies
Source
Figures for Ghilardi et al., 2020
Figure Caption

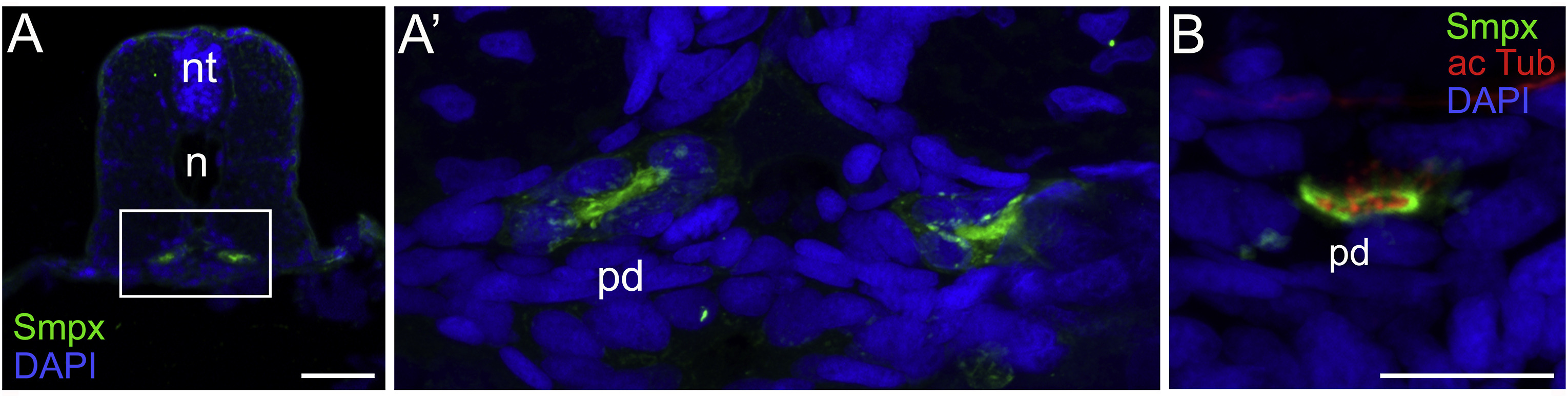

Fig. 5 Smpx localizes to the ciliated cells of the zebrafish pronephros. (A) Cross-section of the trunk of a 48 hpf embryo; the pronephric ducts are labeled in green with the antibody against Smpx. (A′) 5X magnifications of the area enclosed in the rectangle in A; Smpx labels the apical membrane of the ciliated cells facing the lumen of the duct, as also confirmed (B) by the co-labeling with antibodies against Smpx and acetylated tubulin, where the lumen is populated exclusively by the acetylated tubulin-based kinocilia (red) sprouting from the apical membrane and devoid of Smpx (green). Images are all confocal Z-stacks taken from paraffin sections. pd, pronephric duct; n, notochord; nt, neural tube. Scale bars = 50 μm in A; 20 μm in C.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 36, Ghilardi, A., Diana, A., Prosperi, L., Del Giacco, L., Expression pattern of the small muscle protein, X-linked (smpx) gene during zebrafish embryonic and larval developmental stages, 119110, Copyright (2020) with permission from Elsevier. Full text @ Gene Expr. Patterns
