Fig. 9

ID
ZDB-IMAGE-170824-20
Genes
Source
Figures for Chiang et al., 2017
Figure Caption

Fig. 9

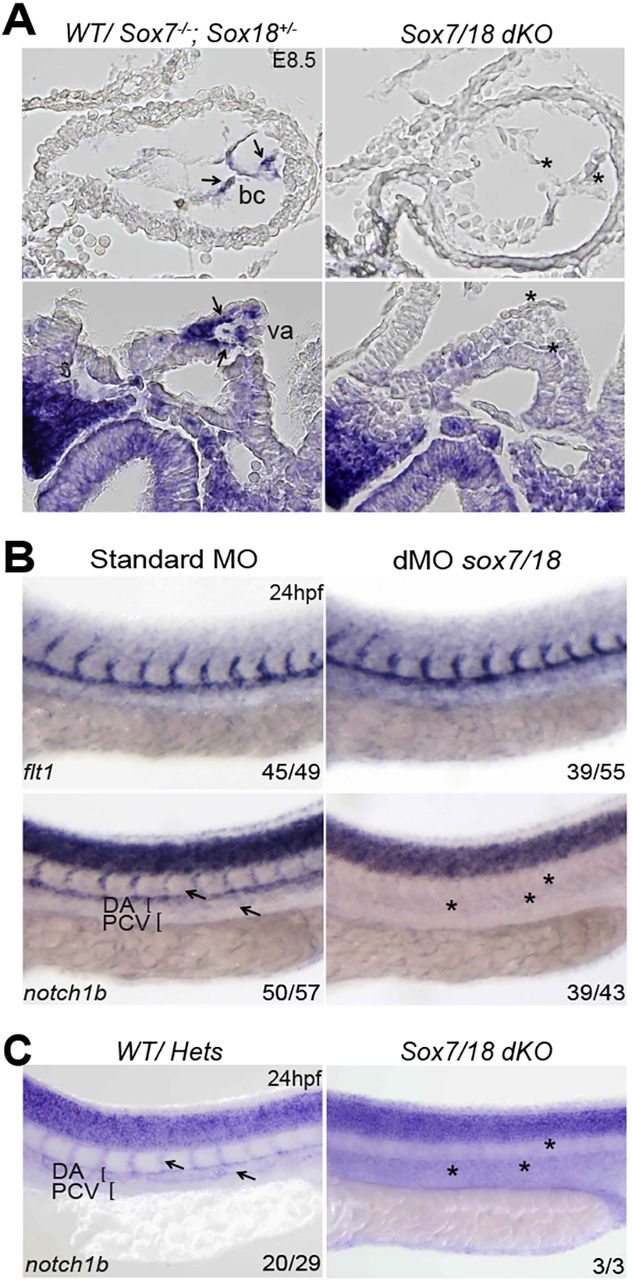

Mouse and zebrafish arterial Notch1 expression is dependent on SOX7/18 activity. (A) Transverse sections of whole-mount in situ hybridisation for Notch1 transcript on E8.5 mouse embryos shows a reduction of Notch1 expression (asterisks) in the bulbus cordis (bc) region of the primitive heart and vitelline artery (va) of Sox7/Sox18 double knockouts. (B) At 24 hpf notch1b expression is significantly downregulated in the dorsal aorta (asterisks) of sox7/sox18 double-morphant zebrafish, whereas its signal is unaffected in the neural tube. flt1 expression is comparable between controls and sox7/sox18 double morphants, indicating that the dorsal aorta is correctly formed. (C) notch1b was barely detectable in the dorsal aorta and ISVs of sox7/18 double-knockout zebrafish (asterisks), as compared with the WT, sox7 or sox18 heterozygotes (arrows). The number of embryos showing the illustrated phenotype among the total examined is indicated. DA, dorsal aorta; PCV, posterior cardinal vein.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
