Fig. S3

ID
ZDB-IMAGE-170315-11
Genes
Source
Figures for Zhang et al., 2015
Figure Caption

Fig. S3

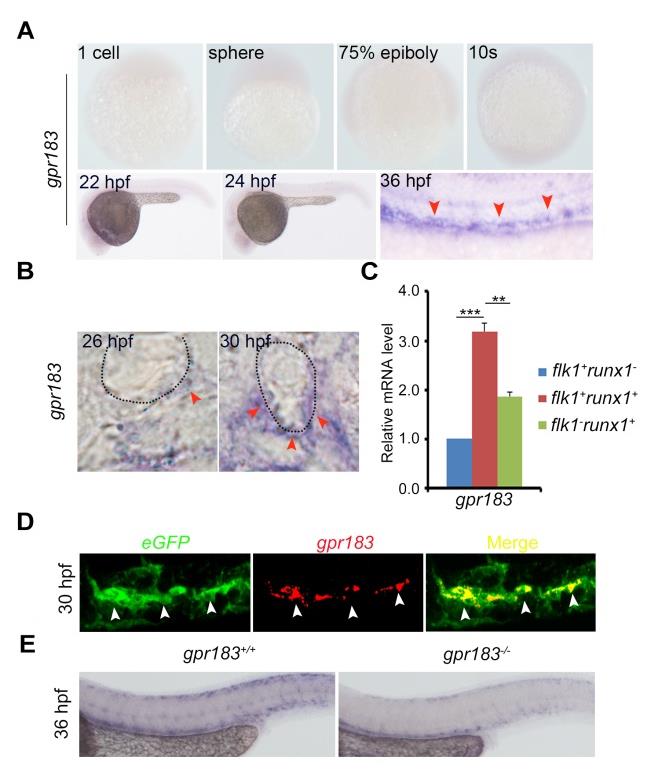

gpr183 is expressed in the hemogenic endothelium (HE) after 24 hpf, and is essential for adult hematopoiesis in zebrafish.(A) Time-course expression of gpr183 ranging from one-cell stage to 36 hpf shows that gpr183 is not expressed before 24 hpf. (B) Frozen sections of the embryos after WISH show that gpr183 is expressed in the AGM at about 26 hpf. (C) gpr183 expression in sorted ECs, HEs and HSPCs at 28 hpf by qPCR. Error bar, ±s. d. *p<0.05, ***p<0.001. (D) gpr183 expression using double fluorescence in situ hybridization (dFISH) in 30hpf Tg(fli1a:eGFP) embryo. (E) gpr183 is not expressed in gpr183-/- embryos.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Res.
