Figures for Lee et al., 2016

Figure Caption/Comments:

Fig. 4

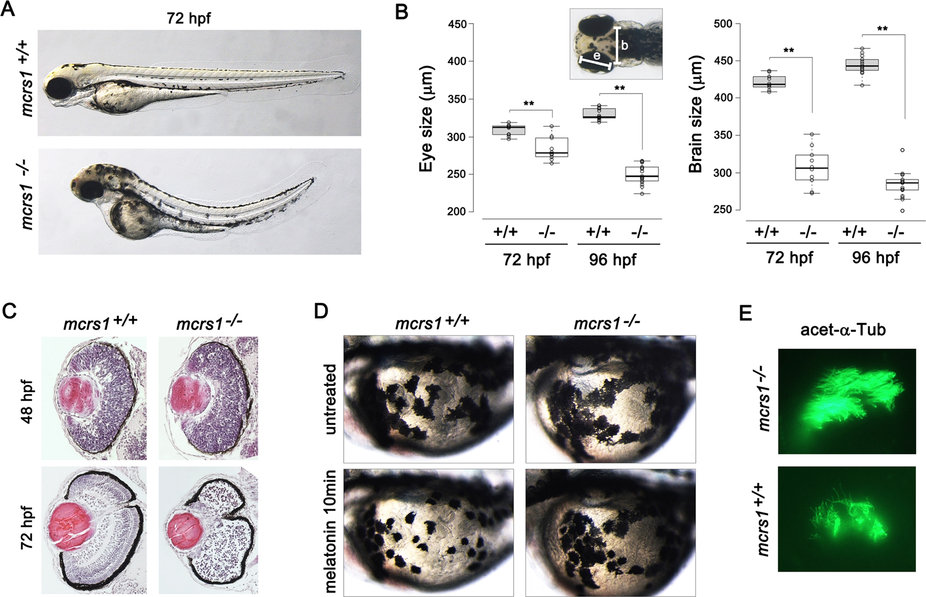

TALEN-mediated knockout of mcrs1 in zebrafish. (A) Homozygous mcrs1 mutant zebrafish exhibited a curved body axis at 72 hpf. (B) Measurement of the size of the eye and the brain (n>10 for each genotype; **P < 0.01, t test). (C) Disruption of retinal lamination in mcrs1 mutant zebrafish at 72 hpf. (D) Melatonin-induced aggregation of melanosome was delayed in mcrs1 mutant zebrafish. (E) Cilia in the olfactory placode were visualized by staining with anti-acetylated tubulin antibody.

Figure Data:
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
