Fig. 8

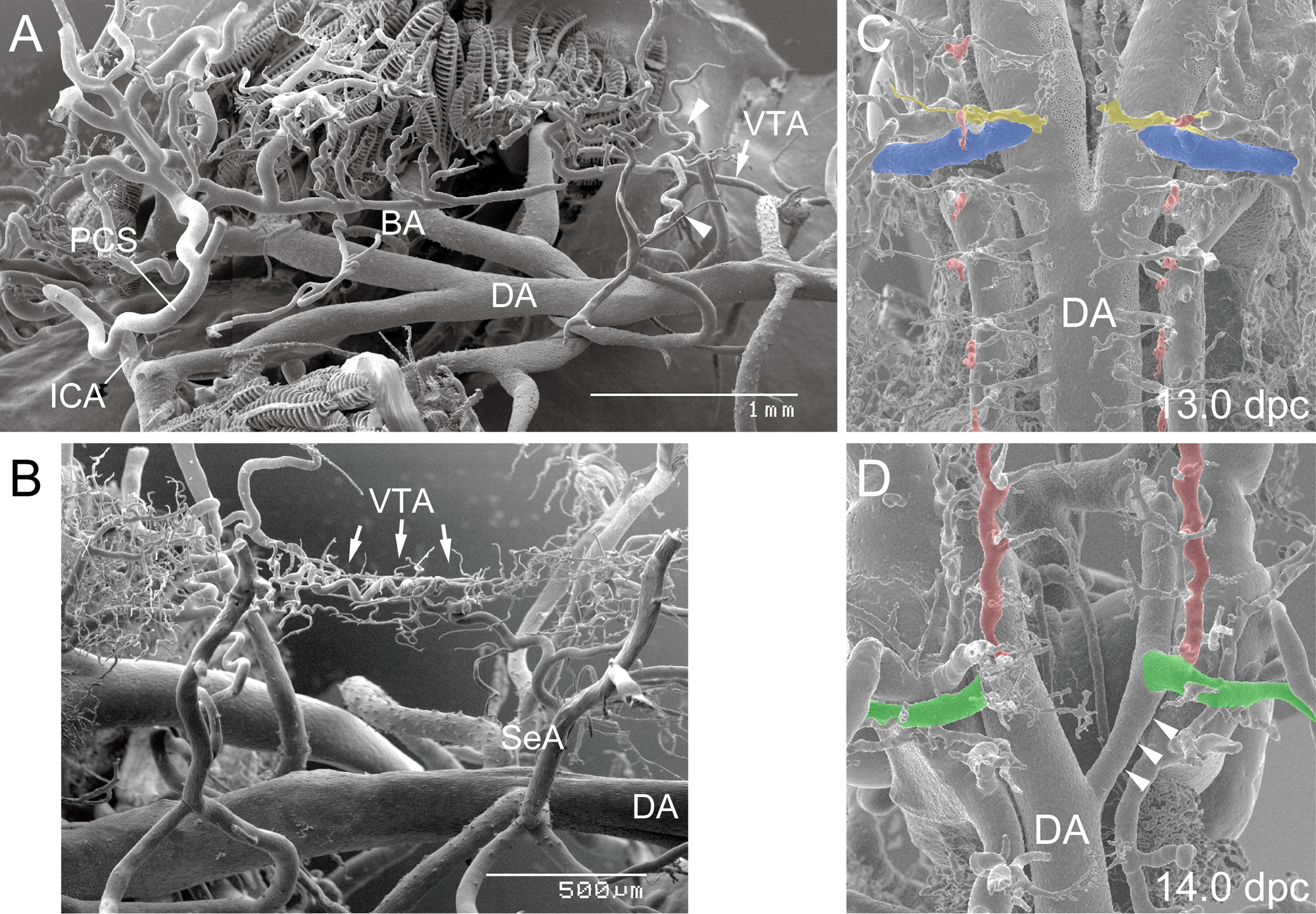

Vascular casts of adult zebrafish and rat embryos. Scanning electron microscopic images of vascular casts of adult zebrafish (dorso-lateral view; A and B) and rat embryos at 13.0 (C) and 14.0 dpc (D; both dorsal view). (C and D) VTA in formation is colored in red; axial vessel for upper limb in blue; seventh SeA in yellow; and subclavian artery in green. Arrows in A and B indicate the VTA. Arrowheads in A indicate the transverse vessel from Se to VTA. Arrowheads in D indicate the regressing aortic arch.
