Fig. 1

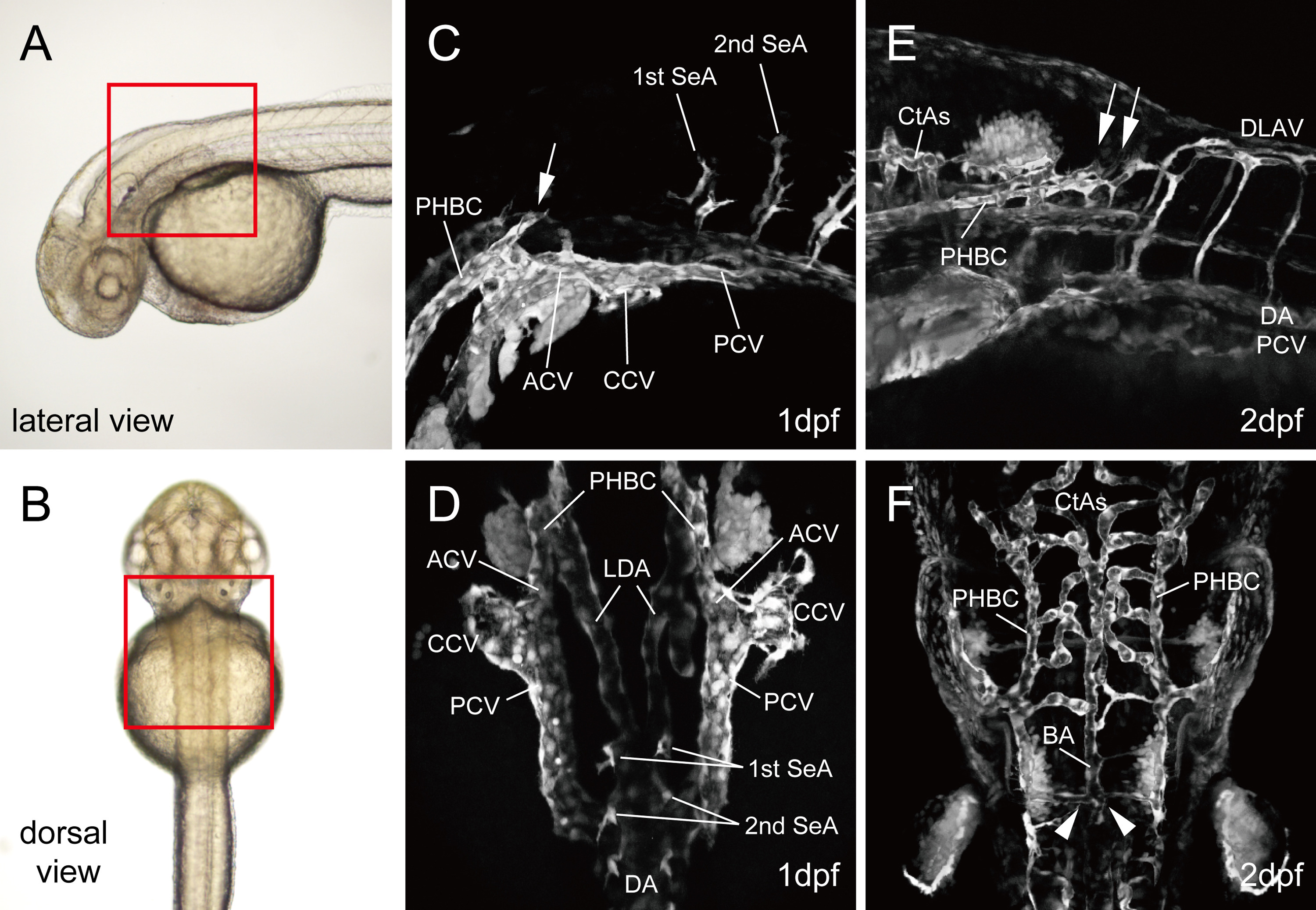

Vascular anatomy of the brain and spinal cord before and after primary integration. Bright field (A and B) and fluorescent (CF) images of Tg(fli1a:EGFP)y1 embryos at 1 dpf (A–D) and 2 dpf (E and F). Lateral (A, C, E) and dorsal (B, D, F) views. Vascular connection between the brain and spinal cord occurred at 1–2 dpf (square region surrounded by red line; A and B). The arrow in C indicates the extending PHBC. Arrows in E indicates the integrative portion. Arrowheads in F indicate the reverse ‘T’ end of the BA.
