Fig. 5

ID
ZDB-IMAGE-140723-58
Genes
Source
Figures for Rydeen et al., 2014
Figure Caption

Fig. 5

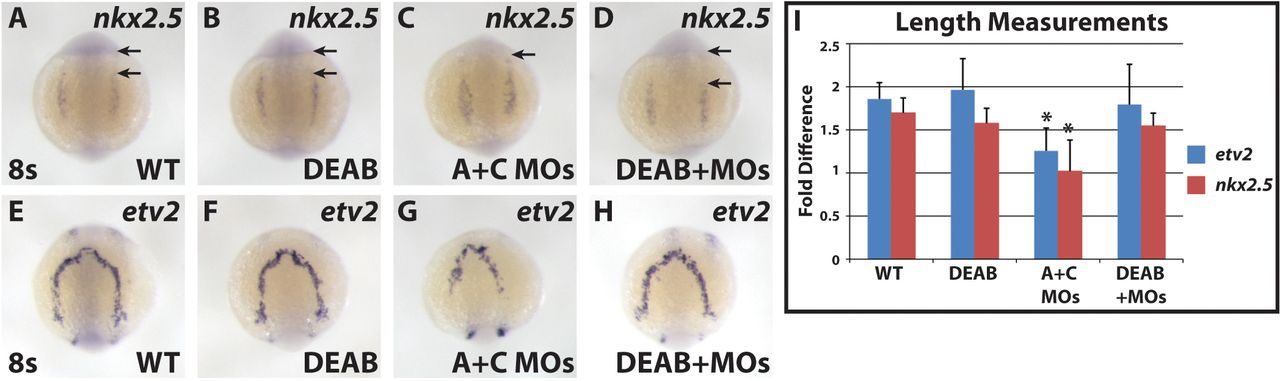

Inhibition of RA restores the sizes of the cardiovascular progenitor fields in Cyp26-deficient embryos. (A-D) nkx2.5 expression in wild-type, DEAB-treated, Cyp26-deficient and Cyp26-deficient+DEAB-treated embryos. (C) Cyp26-deficient embryos have an anterior shift in nkx2.5 expression, which is rescued in (D) DEAB-treated Cyp26-deficient embryos and comparable with wild-type and DEAB-treated embryos (A,B). Arrows in A-D indicate distances between posterior eye and the anterior border of nkx2.5 expression. (E-H) etv2 expression in wild-type, DEAB-treated, Cyp26-deficient and Cyp26-deficient+DEAB-treated embryos. (G) Cyp26-deficient embryos show a posterior truncation in etv2 expression, which is rescued in DEAB-treated Cyp26-deficient embryos (H). (I) Measurements of length of etv2 expression and distance from the anterior tip of the embryo to anterior border of nkx2.5 expression. For etv2 measurements: WT, n=27; DEAB-treated, n=30; Cyp26-deficient, n=17; Cyp26-deficient + DEAB-treated embryos, n=22. For nkx2.5 measurements: WT, n=27; DEAB-treated, n=26; Cyp26-deficient, n=18; Cyp26-deficient + DEAB-treated embryos, n=22. All images are dorsal views with anterior upwards. Significant differences compared with controls are indicated (*P<0.05). Error bars indicate s.d.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
