Fig. 6

ID
ZDB-IMAGE-110516-42
Genes
Source
Figures for Lazic et al., 2011
Figure Caption

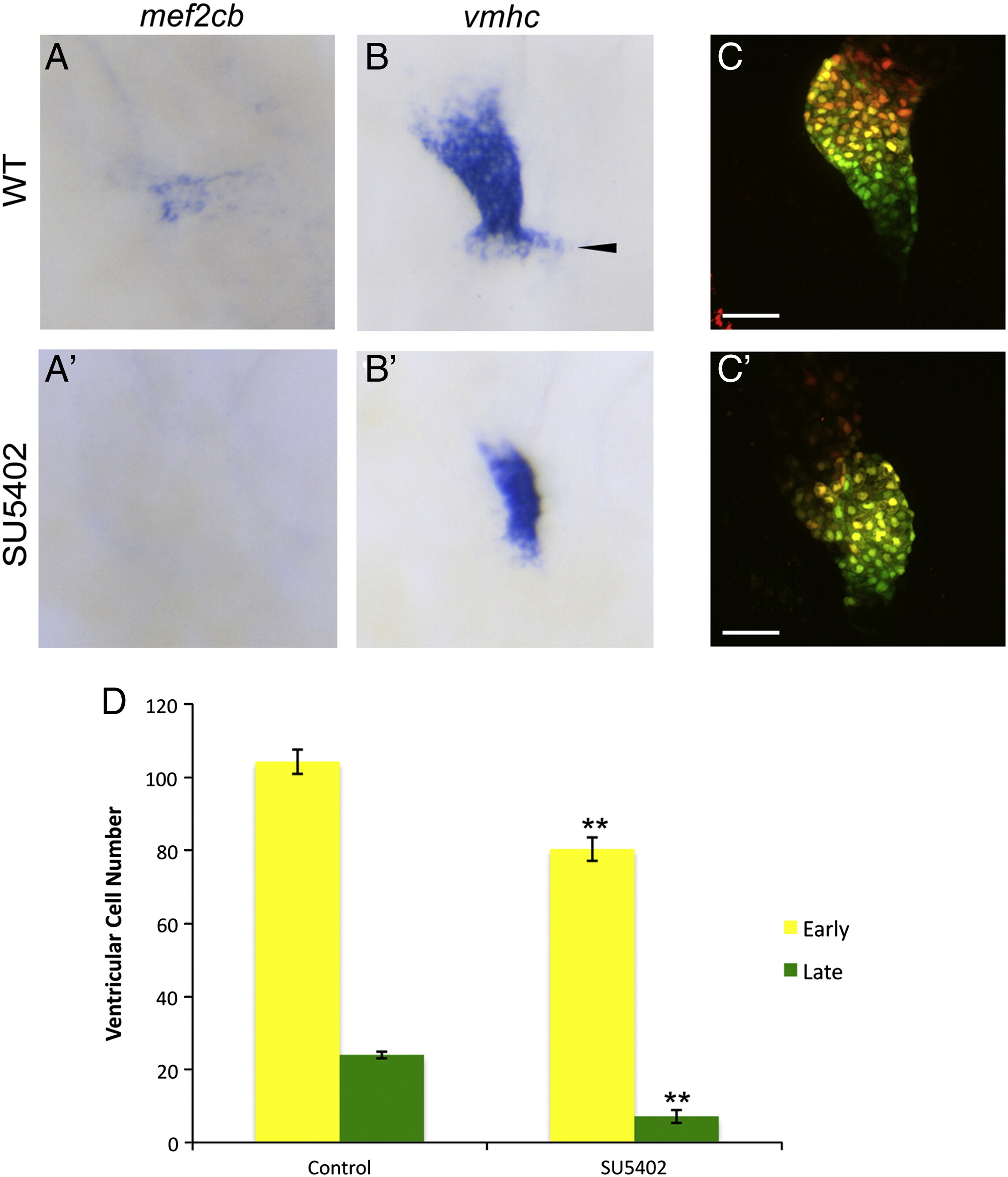

Fig. 6 FGF signaling between 20 and 30 hpf was required for early and late myocardial addition. Chemical inhibition of FGF signaling between 20 and 30 hpf completely abolished mef2cb expression at 30 hpf (compare A to A′). At 30 hpf, the ventricle was smaller and the late ventricular region (arrowhead) was not seen in FGF inhibited embryos (compare B to B′). Photoconversion assay (D) between 30 and 48 hpf showed a smaller ventricle and less late myocardial addition in FGF inhibited embryos (C′) compared to DMSO treated control (C). Data shown as mean ± SEM; **P < 0.01. Scale bar represents 50 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 354(1), Lazic, S., and Scott, I.C., Mef2cb regulates late myocardial cell addition from a second heart field-like population of progenitors in zebrafish, 123-133, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
