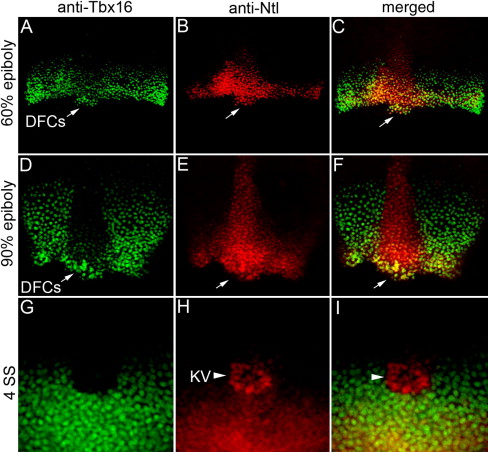

Fig. 1 Ntl and Tbx16 proteins are co-expressed in DFCs. (A–I) Confocal microscopy of double fluorescent immunostaining in wild-type embryos using anti-Tbx16 (green) and anti-Ntl (red) antibodies. Ntl and Tbx16 co-localized in the nuclei of margin cells and dorsal forerunner cells (DFCs; arrows in panels A–F) at 60% epiboly (A–C) and 90% epiboly (D–F) stages. At 4 SS, Tbx16 expression (G) was detected in tailbud cells surrounding Kupffer's vesicle (KV), but not in KV cells marked by Ntl expression (arrow head in panels H, I).
