Fig. 2

ID
ZDB-IMAGE-070917-148
Genes
Source
Figures for Nichane et al., 2006
Figure Caption

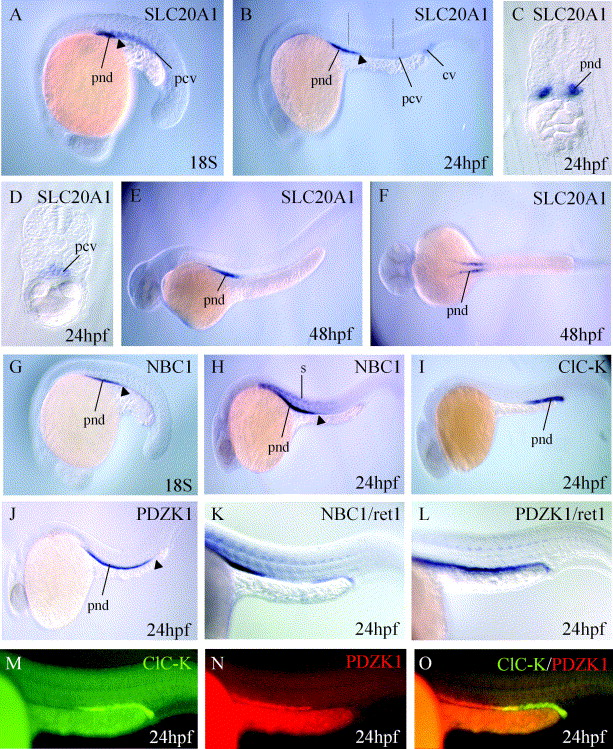

Fig. 2 SLC20A1 expression during zebrafish embryogenesis. Whole-mount in situ hybridization with the indicated DIG-labeled antisense probes at the indicated stages. (A,B,E,G–J) Lateral views with anterior towards the right. (C,D) Transversal sections of the embryo shown in B at the levels indicated. (F) Dorsal view. (K,L) Costaining for NBC1 or ClC-K and ret1. ClC-K posterior limit of expression extends further than that of NBC1 and appears to correspond to the anterior limit of ret1. (M–O). Double in situ hybridization with ClC-K (green) and PDZK1 (red) indicates that a cell population in the middle of the pronephros expresses both ClC-K and PDZK1 (yellow). Arrowheads show the distinct posterior limit of the expression of the indicated markers. Abbreviations: cv, caudal vein; pcv, posterior caudal vein; pnd, pronephric duct segment; s, somites.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 6(7), Nichane, M., Van Campenhout, C., Pendeville, H., Voz, M.L., and Bellefroid, E.J., The Na(+)/PO(4) cotransporter SLC20A1 gene labels distinct restricted subdomains of the developing pronephros in Xenopus and zebrafish embryos, 667-672, Copyright (2006) with permission from Elsevier. Full text @ Gene Expr. Patterns
