Figure Caption

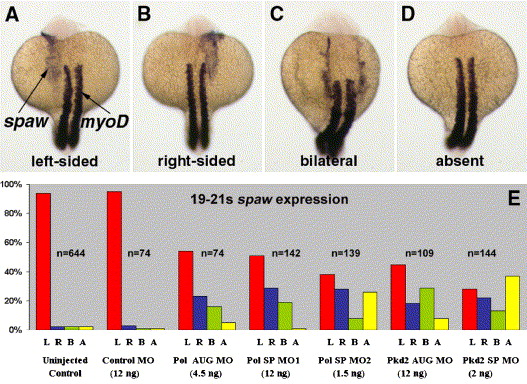

Fig. 3 Polaris and pkd2 morpholinos cause randomized expression of spaw (A–E). Polaris and pkd2 morphants show left-sided (A), right-sided (B), bilateral (C) or an absence (D) of spaw expression in the LPM (Pol AUG MO morphants shown). MyoD expression in somites was used to stage embryos. (E) Histogram showing the percentage of control and morphant embryos with left-sided (L), right-sided (R), bilateral (B) or absent (A) spaw expression.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 287(2), Bisgrove, B.W., Snarr, B.S., Emrazian, A., and Yost, H.J., Polaris and Polycystin-2 in dorsal forerunner cells and Kupffer's vesicle are required for specification of the zebrafish left-right axis, 274-288, Copyright (2005) with permission from Elsevier. Full text @ Dev. Biol.
