FIGURE

Fig. 6

ID

ZDB-FIG-231004-62

Publication

Uribe et al., 2023 - Hepatocyte growth factor mimetic confers protection from aminoglycoside-induced hair cell death in vitro

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6

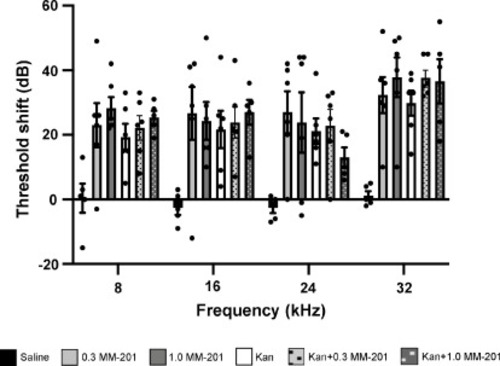

MM-201 does not alter aminoglycoside-induced threshold shifts in mice. Animals were treated with 0, 0.3, or 1 µg/ml MM-201 with or without kanamycin. Threshold shift was calculated as the post-treatment minus the pre-treatment threshold for each animal. There is a significant effect of both treatment (F_5,112=16.77, p<0.0001) and frequency (F_3,112=5.847, p = 0.001) (2-way ANOVA), but this effect manifests as differences between saline-treated controls and each of the other groups. Each black dot denotes the threshold shift for each individual animal. N = 5–6 animals/group (2–3 per sex) and error bars represent ± s.e.m.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Hearing Research, 434, Uribe, P.M., Hudson, A.M., Lockard, G., Jiang, M., Harding, J., Steyger, P.S., Coffin, A.B., Hepatocyte growth factor mimetic confers protection from aminoglycoside-induced hair cell death in vitro, 108786108786, Copyright (2023) with permission from Elsevier. Full text @ Hear. Res.
