Fig. 6
- ID
- ZDB-FIG-230508-69
- Publication
- Yu et al., 2022 - Changes in aggression and locomotor behaviors in response to zinc is accompanied by brain cell heterogeneity and metabolic and circadian dysregulation of the brain-liver axis
- Other Figures
- All Figure Page
- Back to All Figure Page

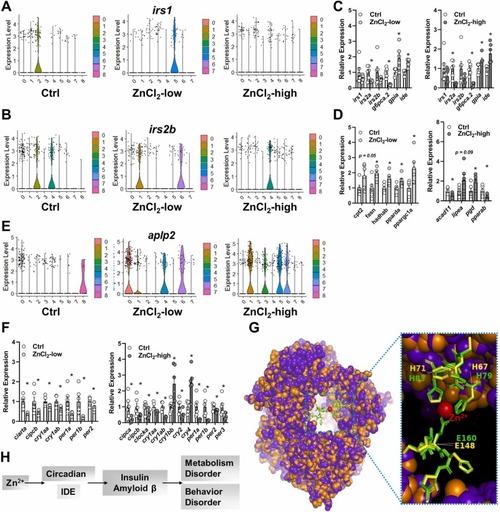

Fig. 6. Transcriptional signature of genes related to circadian and metabolic functions in the brain and liver. Signature DEGs associated with insulin functions in the brain (A and B) and liver (C); signature DEGs associated with lipid metabolism in the liver (D); signature DEGs associated with neurodegenerative diseases (aplp2, amyloid beta precursor like protein, E) signature DEGs associated with circadian rhythm in the liver (F); alignment of zebrafish IDE (purple) with human IDE (orange) with the zinc binding pockets shown (zebrafish: yellow; human: green, G); a potential functional integration of circadian and metabolism signatures between the liver and brain (H). In figure G, the SWISS-MODEL of zebrafish IDE to human IDE (PDB ID: 2JG4.1) was used as template. |
